Zhengzhou shanghe electronic technology co. LTD

10W Bmi Measurement Machine

Product Details:
Place of Origin: ZHENGZHOU,HENAN
Brand Name: SHANGHE
Certification: CE、EUIPO、GB/T 29490-2013、Urkunde
Model Number: SH-600GX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1250*300*300; 460*570*200;360*210*300(L*W*H mm)
Delivery Time: 3-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets/month
  • Detail Information
  • Product Description

Detail Information

Other Name: Medical Kiosk Health Check Station Height Weight Blood Pressure With Printer Display Type: LCD HD 7.0 Inch
Pulse: 40 - 180 Pulse / Min Blood Pressure: 0 - 299 MmHg
Color: White/blue/other Gross Weight: 24kg
Port: Qingdao Or Tianjin Port Power Supply: AC100V-240V , 50HZ / 60HZ
Material: Metal Cabinet Power: ≤10W
High Light:

10W Bmi Measurement Machine


LCD HD Bmi Measurement Machine


180 Pulse/Min Health Kiosk Machine

Product Description


Body Height Weight Blood Pressure Scale Adult Medical Blood Pressure Height And Weighing Scale


Product Information

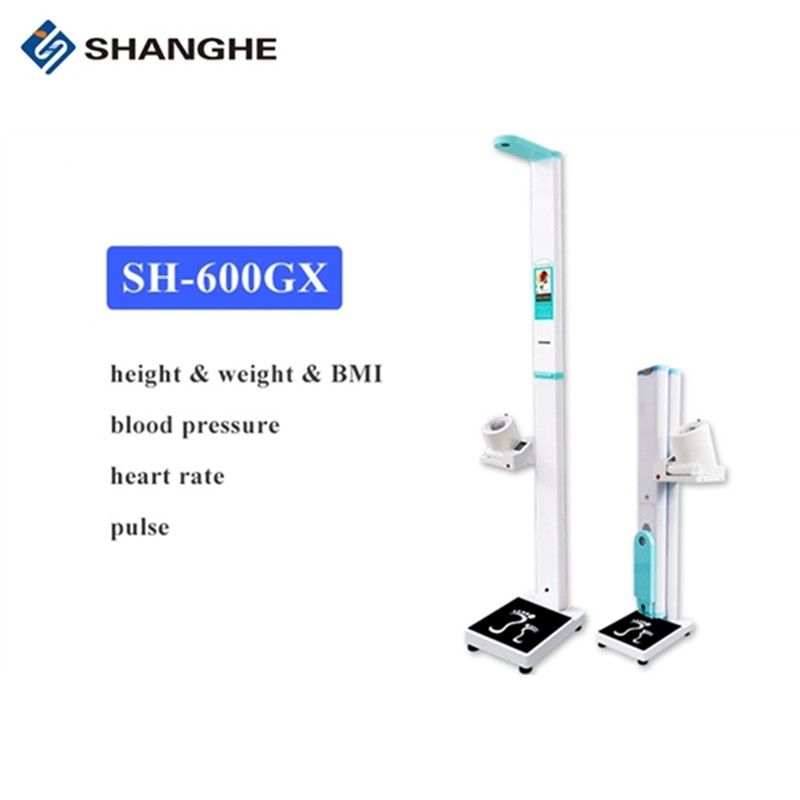

After put the coin, SH-600GX Ultrasonic Physical Checkup Machine can automatically measure the height, weight, blood pressure, heart rate. At the same time it can display the BMI value and connect with the computer for archiving.


1.Controlled by microcomputer, without manual operation


2.Automatically measure height and weight and calculate BMI


3.Fast measure (480 times per hour)


4.Display the temperature and time


5.Speaking out the measuring result


6.Can adjust the language according to your language

Product Description:


10W Bmi Measurement Machine 0


Product details:


10W Bmi Measurement Machine 1


Type SH-600GX
Measure Data: Weight,height
Height Measurement: Mode American original imported ultrasonic detector (automatically ambient-temperature compensation).
Range: 20-200cm
Accuracy: 0.5 cm
Weight Measurement: Mode Precise pressure sensor;the scale is shaped by cold plate hydraulic press,rather than cast iron.
Range: 2-200kg
Accuracy: 0.1kg
Highlights: Measuring after one coin(optional),four moving wheels
Blood Pressure Measurement Range: 0-39KPa
Heart Rate Measurement Range: 40-180 Times per minute
Fast Measure: 480 times per hour
Display Mode: One-inch LCD screen
Stand-by state: Date,time,room temperature
After measuring: Height,weight,blood pressure,heart rate
Voice: Measuring suggest,electronic voice broadcast results
Print Method: High-speed thermal printer, automatically cuts paper
Voltage: AC:110V-220V,50HZ DC:12V
Output Interface: RS-232



10W Bmi Measurement Machine 2

Automatic height

and weight measurement


Bright 7.0 inch LCD display

Foldable and portable

easy to install and

low maintenance

10W Bmi Measurement Machine 3
10W Bmi Measurement Machine 4

Accurate ultrasound

height measurement

Measurement range: 50-210cm


with wheels, easy to move,

RS- 232 and BlueTooth

smart connection available

10W Bmi Measurement Machine 5




10W Bmi Measurement Machine 6


Our Service


1. Professional inspector check scales quality before delivery.


2. Provide merry go round best after-sales service until you satisfied with our product.


3. We provide scales direction of installation to help you install the scales .


4. Provide scales experienced instruction of how to operate the equipment and how to manage.


5. The global quality of this product is guaranteed for one year, lifetime technology and after-sales service.


6. Provide software, hardware system customization services





10W Bmi Measurement Machine 7




Q1. What is your terms of packing?

A: Generally, we pack our goods in carton case per set


Q2. What is your terms of payment?

A: T/T 40% as deposit, and 60% against delivery. We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?



Q4. How about your delivery time?

A: Generally, it will takes 3-5days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
