Home ProductsBody Composition Analyzer ScaleNutritional Content Analyzer Body Scanner 3d Foot Scanners
Nutritional Content Analyzer Body Scanner 3d Foot Scanners
Nutritional Content Analyzer Body Scanner 3d Foot Scanners
Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners Nutritional Content Analyzer Body Scanner 3d Foot Scanners

Nutritional Content Analyzer Body Scanner 3d Foot Scanners

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO
Model Number: SH-V9F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: 176*41*21cm(20kg)1piece，43*67*49cm(23kg)1piece
Delivery Time: 5-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Nutritional Content Analyzer Body Scanner 3d Foot Scanners Keywords: Body Composition Analysis Machine Suppliers And Manufacturers
Electrode: 8 Point Contact Electrode Frequency: 20KHz, 100KHz
Color: Blue/green/black/customized Color Material: Metal Cabinet
Certificate: CE, ISO, Application: Gym, Clinic, Beauty Salon,nutrition Center

Product Description

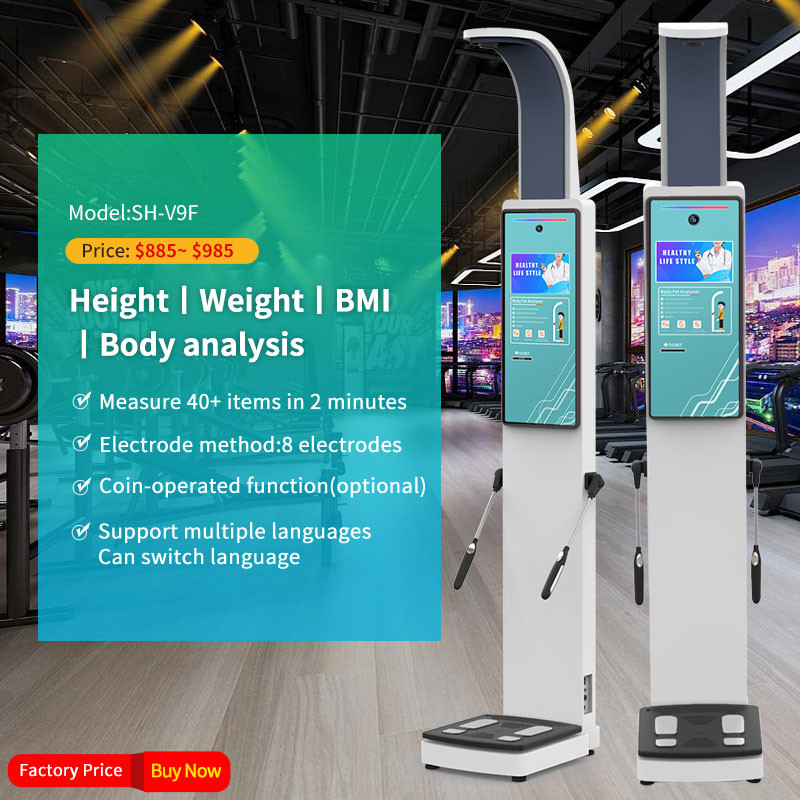

Nutritional Content Analyzer Body Scanner 3d Foot Scanners



Nutritional Content Analyzer Body Scanner 3d Foot Scanners 0

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 1

Product Specifications:



Model
SH-V9F

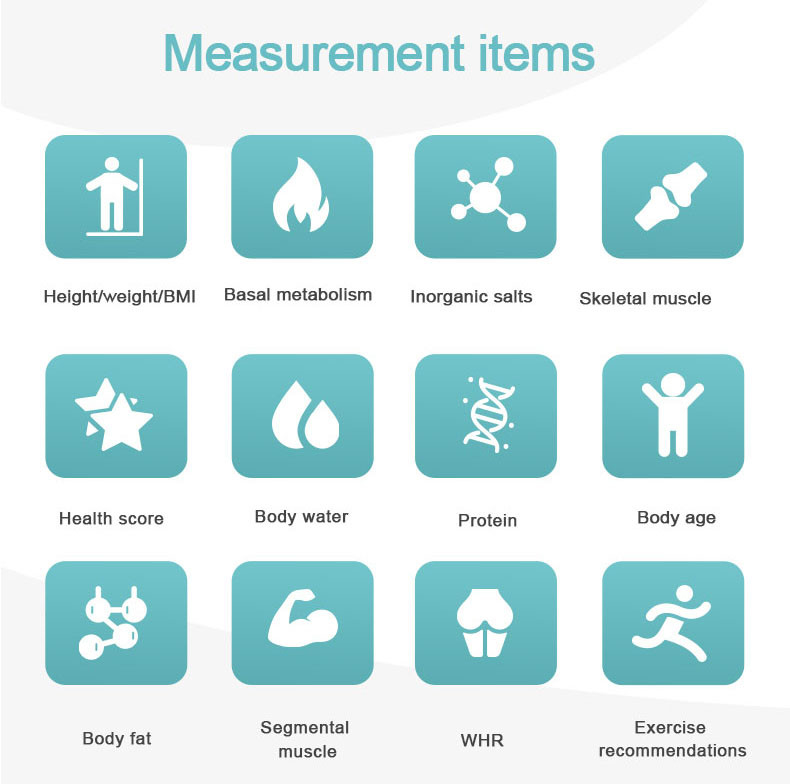

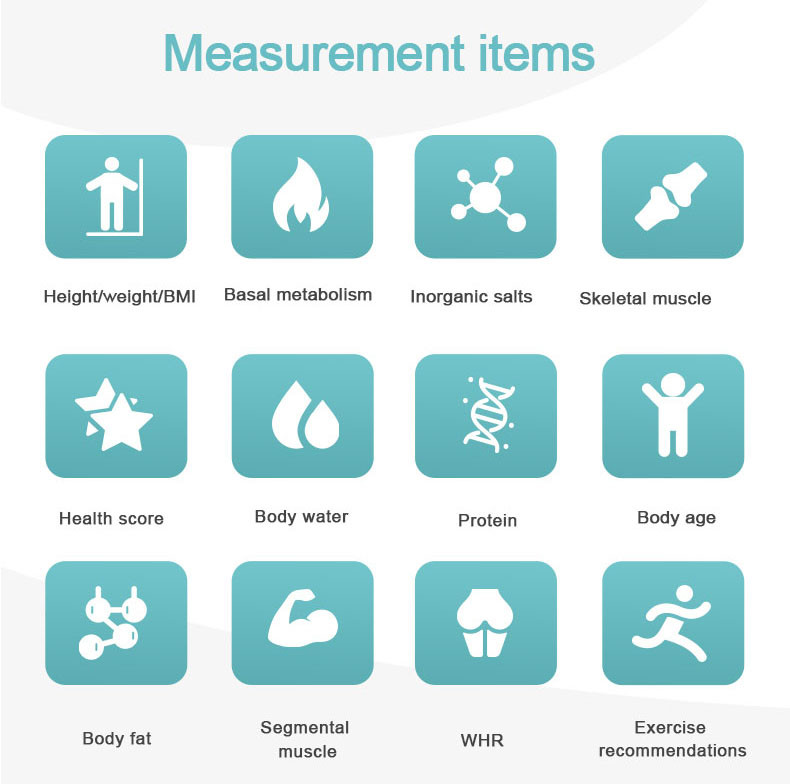

Measurement Items
Weight, height, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat
percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism,
waist-to-hip ratio, etc.



Body composition analyzer
8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz, 100KHz
Impedance measurement range: 10-2000Ω
Current: ≤420±20μA
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)

Height Measurement
Measure range: 20-205cm
accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
Measure mode: ultrasonic probe

Weight Measurement
Measure range: 5-500kg
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Measure mode: precise balanced sendor
Display Mode

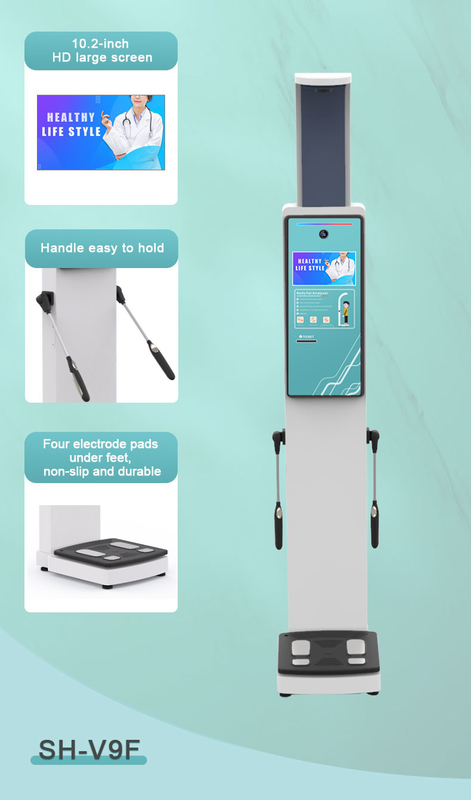

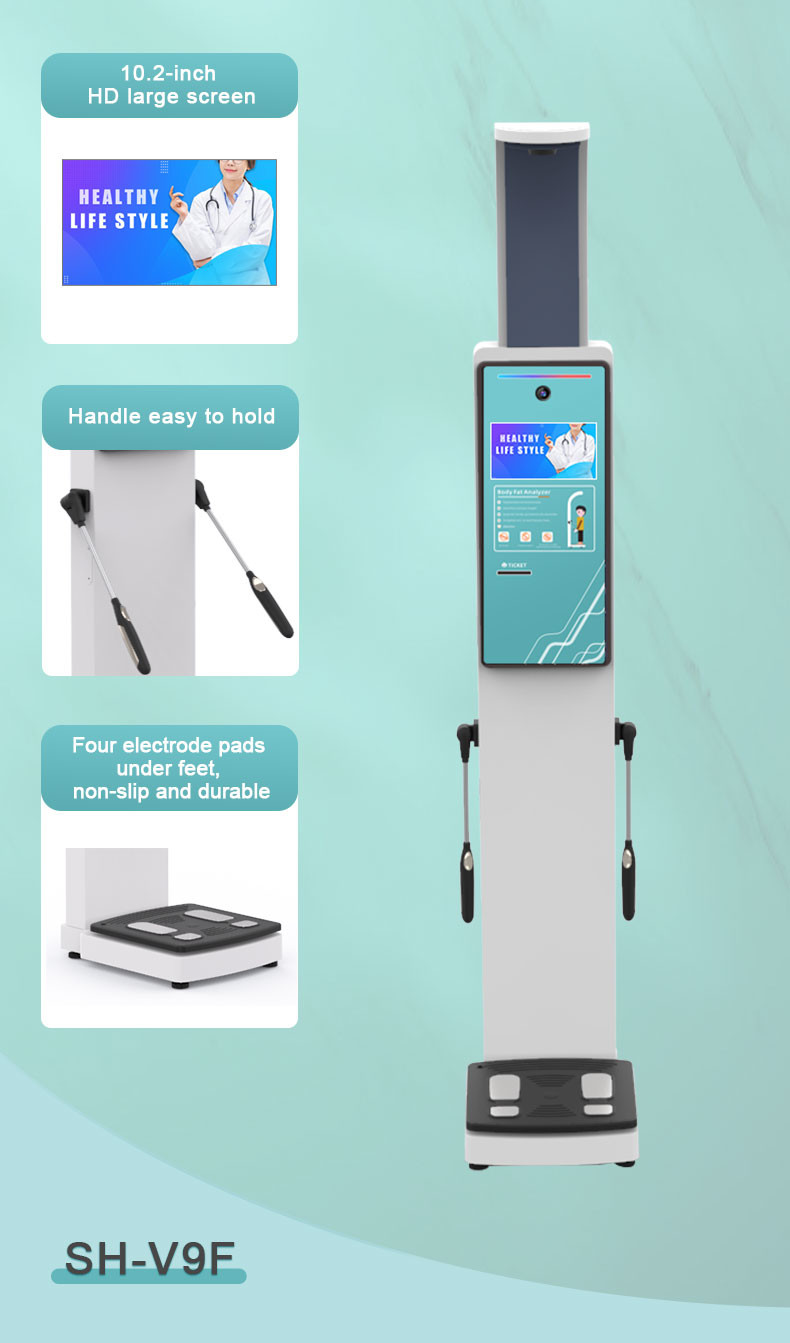

HD LCD 10.2-inch display touch system, play pictures and videos in standby mode
Report Output
Thermal printing/A4 Report/Test result send to mobile
Coin operated(Optional)
Intelligent multi-currency recognition
Power Supply Voltage
AC160v-250v,50HZ
Data Output Format
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Overall dimension
550*390*2350mm /LWH(mm)
Packing Size
180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM
Identify(Optional)
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.





Certifications:

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 2

Product Description:

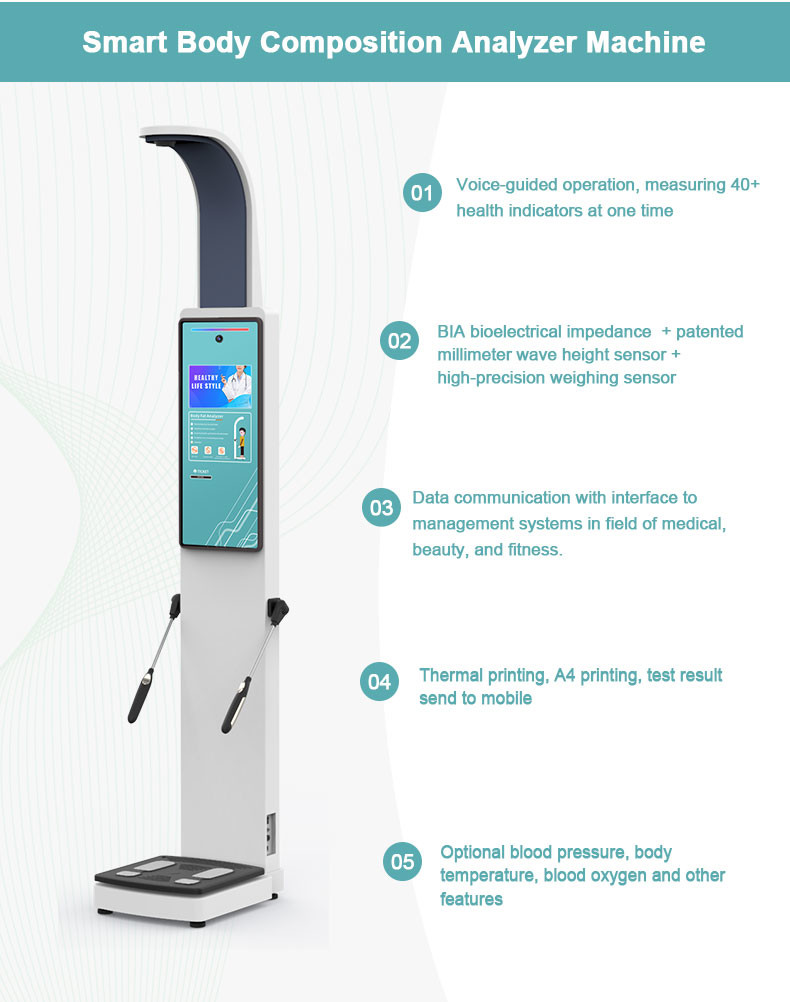

SH-V9F Height Weight Body Fat Machine Functions:

1.Face recognition (optional)
2.Fully automatic measurement of height and weight, automatic sensing system
3.Ultrasonic technology to measure height (temperature compensation)
4.Precision balance beam resistance strain sensor
5.Intelligent calculation of BMl
6.HD LCD 10.2-inch display touch system, play pictures and videos in standby mode
7.Coin operated/paper money (optional)
8.8-electrode human bioelectrical impedance method (BIA)
9.High-speed thermal printing, automatic printing of measurement results
10.Displays indoor temperature and current time

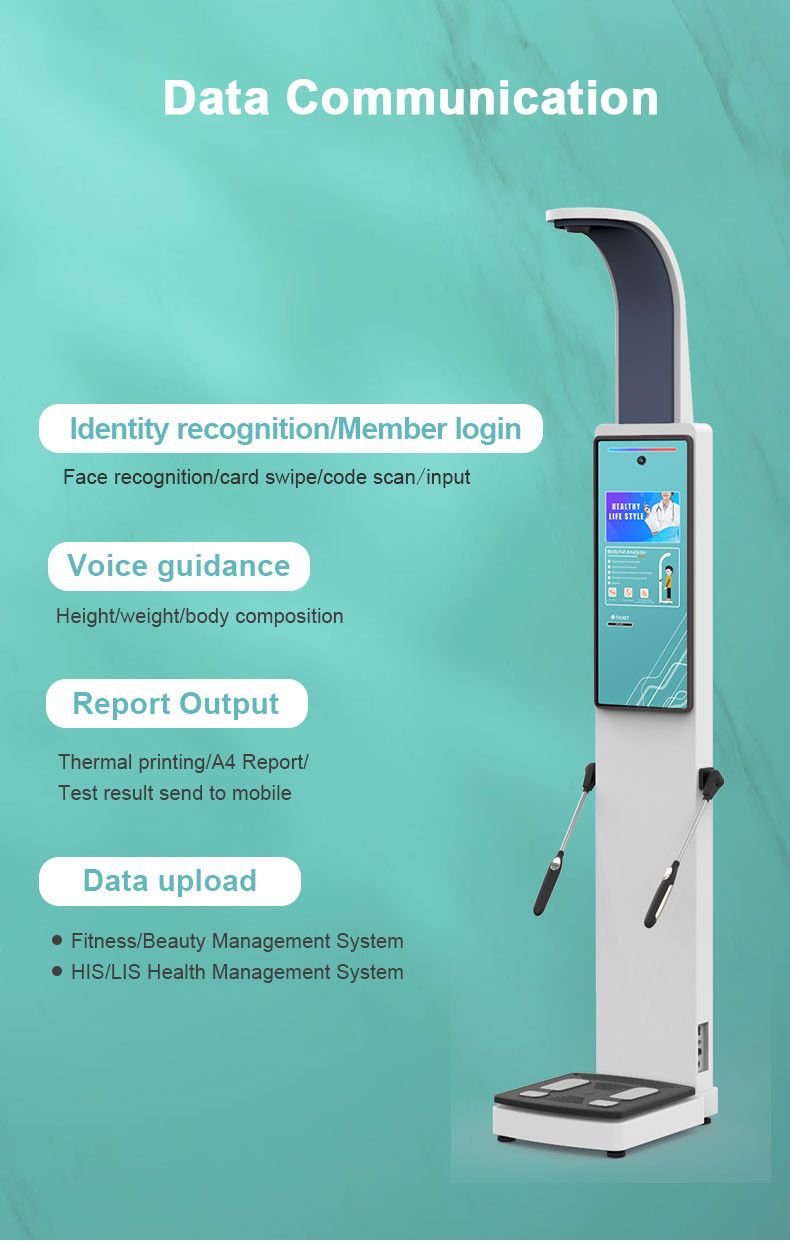

11.Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
12.It can be connected with a computer, and the results are transmitted to the customer's Software.
13.Supports multiple languages and can switch languages on the screen.
14.Expansion: barcode/QR code, IC/ID card etc.
15.Report Output:Thermal printing, test result send to mobile, A4 printing/test result send to email/view reports on the cloud platform(optional)

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 3
Nutritional Content Analyzer Body Scanner 3d Foot Scanners 4
Nutritional Content Analyzer Body Scanner 3d Foot Scanners 5
Nutritional Content Analyzer Body Scanner 3d Foot Scanners 6
Nutritional Content Analyzer Body Scanner 3d Foot Scanners 7
Nutritional Content Analyzer Body Scanner 3d Foot Scanners 8

Our Advantages:
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
