SH-T17 Medical Kiosk All-in-one Health Check-up Station

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO
Model Number: SH-T17
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 11399
Packaging Details: 1800*850*1300mm (115kg) 1750*610*500(59kg) 2.6CBM
Delivery Time: 5-15 days
Payment Terms: T/T,Western Union,MoneyGram,D/P,L/C,D/A
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Product Name: SH-T17 Medical Kiosk All-in-one Health Check-up Station Keywords: All-in-one Health Check-up Station
Material: Metal Cabinet Screen: 15.6-inch + 7-inch HD LCD Screen
Blood Pressure: 0-299mmHg(0kPa-39.9kPa) Basal Metabolism: 385Kca1-5000Kcal
Customized: Language/Logo/Sticker/Color Report Output: Thermal Printing, A4 Printing, Test Result Send To Mobile/Email
Language: Supports 17 Mainstream Languages, Customizable Languages Voltage: AC100V-240V/12V DC Power

Product Description

Medical Kiosk All-in-one Health Check-up Station


Product Specifications:

Model
SH-T17 Smart Health Management All-in-One Machine
HD LCD Screen
15.6-inch + 7-inch HD LCD screen, play videos and pictures, intelligent display of results
Intelligent Recognition
Standard face recognition login, user input login, etc. Optional: IC/ID card, QR code scanning, etc. (other methods can be
customized)
Height
Measuring range: 20-205cm; accuracy: ±0.5cm; division value: 0.5cm or 0.1cm adjustable
Weight
Measuring range: 2.0-500kg; accuracy: ±0.1kg; division value: 0.1kg or 0.01kg adjustable
Blood Pressure
Medical grade upper arm tube pulse wave blood pressure monitor, pulse wave blood pressure measurement method, 17-42cm, accuracy
within ±2mmHg
Body Fat
BIA human bioelectrical impedance measurement technology, body fat mass, body fat percentage, basal metabolism, body water mass,
body water percentage, body bone mass, body muscle mass, body muscle percentage, etc.
Body Temperature
Temperature range: 32℃-42.9℃ Measurement error: ±0.2℃ Resolution: 0.1℃ Measuring distance: 1-5cm
Blood Oxygen
Measurement accuracy: within the range of 70%~99% Measurement error is ±2% Resolution: 1%
Blood Sugar
Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Uric Acid
Measuring range: 3-20mg/dl (0.19-1.19mmol/L)
Cholesterol
Measuring range: 100-500mg/dl (2.29-12.93mmol/L)
Waist Circumference
Smart Bluetooth waist ruler, detect waist circumference, hip circumference, waist-to-hip ratio
Urinalysis
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc.
12-lead ECG
Standard 12-lead, dynamic electrocardiogram
Four Blood Lipids
Total cholesterol, HDL, triglycerides, LDL
Hemoglobin
Hemoglobin and hematocrit
Vision
Test content: left and right eye vision test, left and right astigmatism test, color weakness and color blindness test
Mental Health Assessment
Comprehensive psychological assessment in 11 aspects including Hamilton anxiety, depression, loneliness, personality disorder,
interpersonal relationships, life satisfaction, Pittsburgh sleep quality, etc.
TCM
Yang deficiency constitution, Yin deficiency constitution, Qi deficiency constitution, Phlegm-damp constitution, Damp-heat
constitution, Blood stasis constitution, Special constitution, Qi stagnation constitution, Peaceful constitution
Other Items
The device supports more than 20 physical examination items and more than 100 health indicators, which can be flexibly selected
according to needs (customizable and expandable)
Data Transfer
Supports transmission to the Internet or LAN via WIFI/RJ45 network port, as well as QR code communication, data export, etc.
(customizable and docking data)
A4 Print Report
A4 printing
Optional Functions
Bone density, rapid ECG, alcohol test, arteriosclerosis, glycosylated hemoglobin, BIM turntable, dietary pyramid

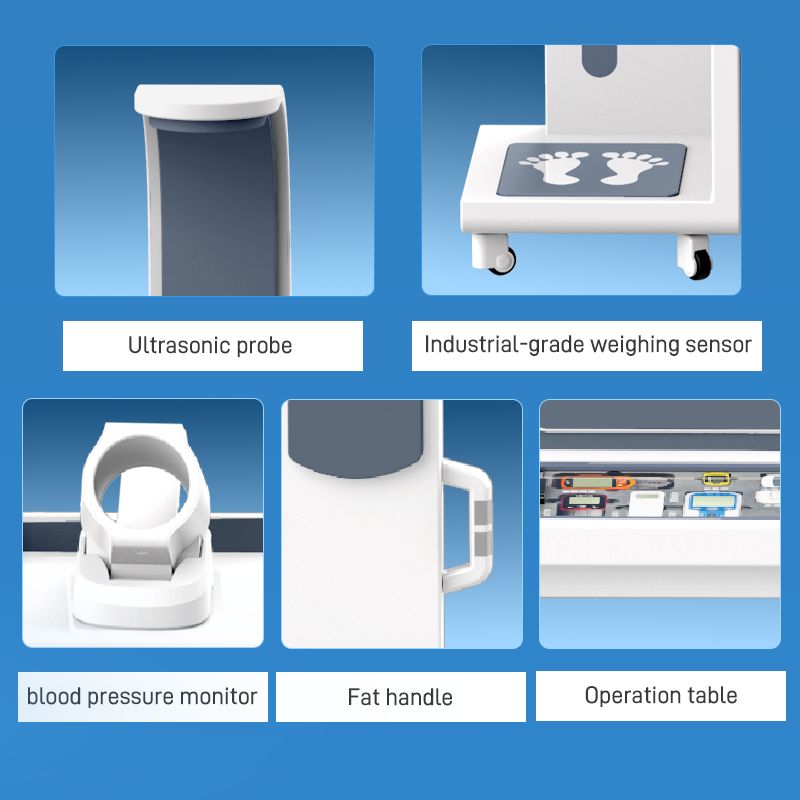

SH-T17 Medical Kiosk All-in-one Health Check-up Station 0


Product Description:

SH-T17 smart health management all-in-one machine is an IOT self-service physical examination management device, mainly used in primary medical units, health care centers, health management institutions, enterprises and institutions. With built-in ID card reader and camera, users can log in for physical examinations by themselves, establish personal health records, and upload measurement results to the medical platform via the Internet, or view the result report on the mobile phone at any time.

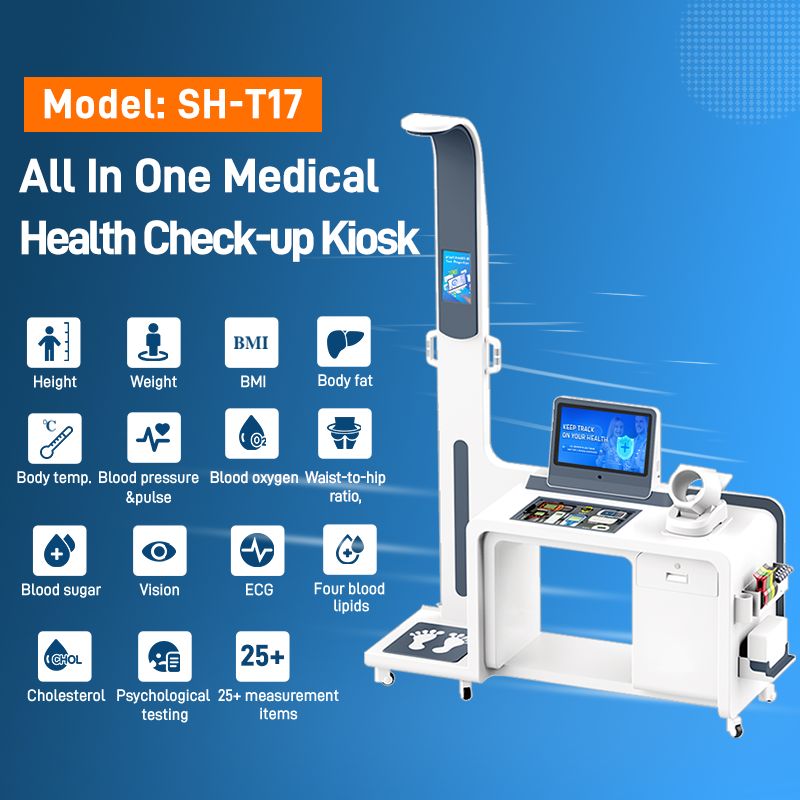

SH-T17 Medical Kiosk All-in-one Health Check-up Station 1

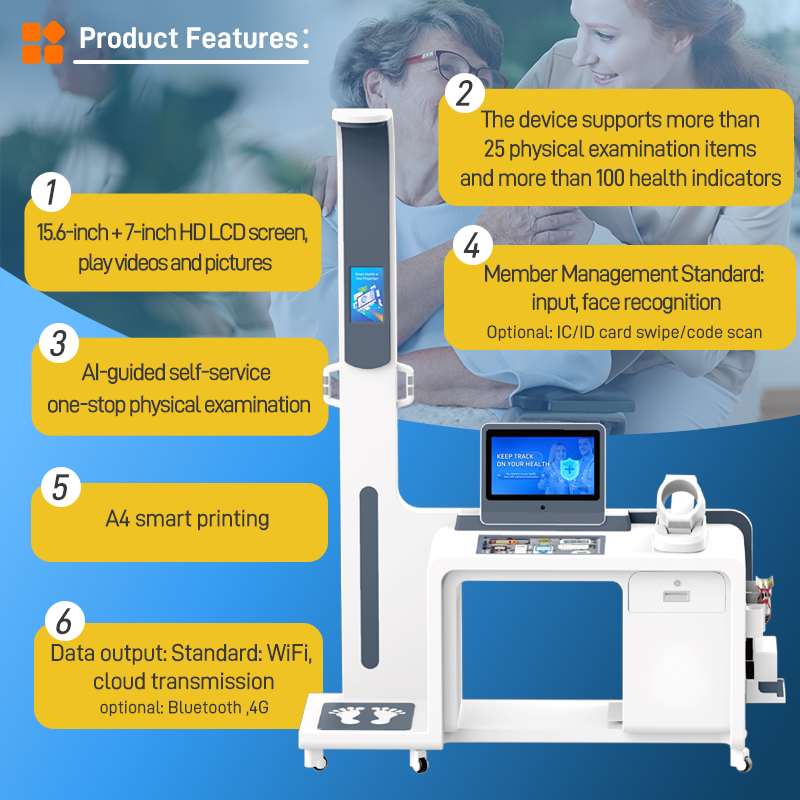

SH-T17 Medical Kiosk All-in-one Health Check-up Station 2

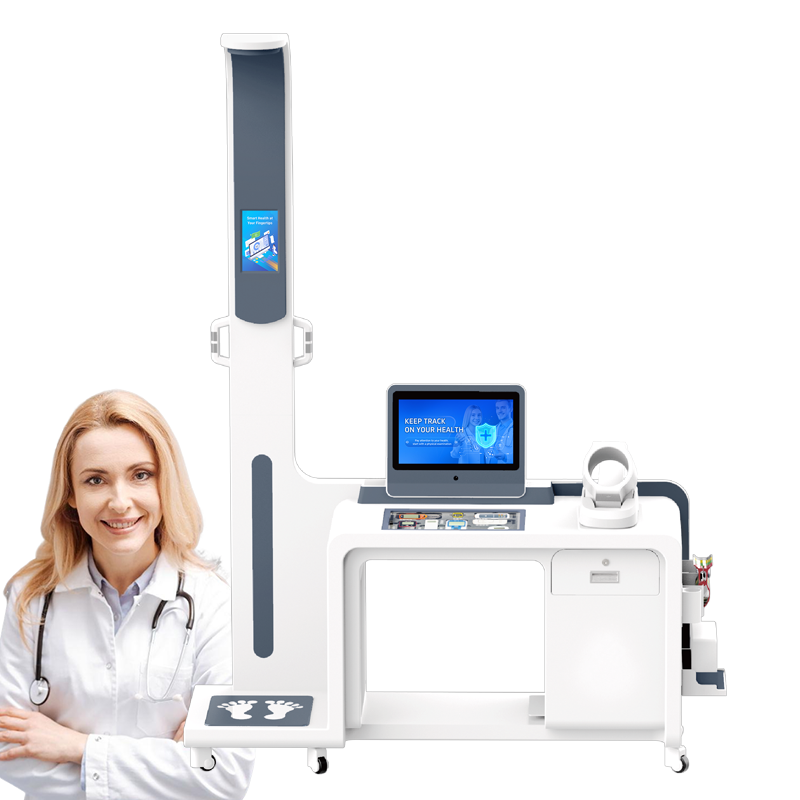

SH-T17 Medical Kiosk All-in-one Health Check-up Station 3

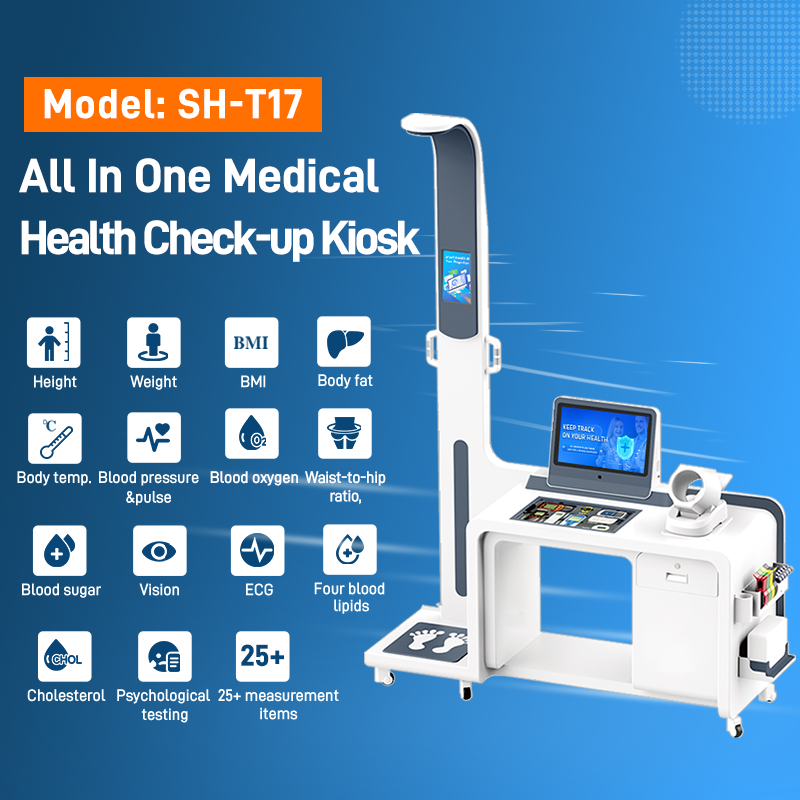

SH-T17 Medical Kiosk All-in-one Health Check-up Station 4

SH-T17 Medical Kiosk All-in-one Health Check-up Station 5


Certifications:

SH-T17 Medical Kiosk All-in-one Health Check-up Station 6

Hot Sale Products:

SH-T17 Medical Kiosk All-in-one Health Check-up Station 7

Packaging&Shipping:

SH-T17 Medical Kiosk All-in-one Health Check-up Station 8

SH-T17 Medical Kiosk All-in-one Health Check-up Station 9

Company Profile:

SH-T17 Medical Kiosk All-in-one Health Check-up Station 10

FAQ:

1. Are you trading company or manufacture?

Yes, we are a professional factory.

2. What is your terms of packing?

Generally, we pack our goods in carton case per set.

3. What is your terms of payment?
T/T 40% as deposit, and 60% against delivery. We'll show you the photos of the products and packages before you pay the balance.
4. What is your terms of delivery?
EXW, FOB, CIF, CFR.
5. How about your delivery time?
Generally, it will takes 3-5 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
