All in One Medical Health Check-up Kiosk Intelligent Health Kiosk

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO
Model Number: SH-T16
Document: SH-T16.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5590
Packaging Details: 126*31*31cm (10kg) ; 46* 57*20cm (11kg) ; 130*94*72cm(85kg); 1.06CBM
Delivery Time: 5-15 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Product Name: All In One Medical Health Check-up Kiosk Intelligent Health Kiosk Keywords: Health Check-up Kiosk
Material: Metal Cabinet Screen: 15.0-inch HD LCD Screen
Blood Pressure: 0-299mmHg(0kPa-39.9kPa) Data Transfer: Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Voltage: AC100V-240V/12V DC Power Customized: Language/Logo/Sticker/Color
Usage: Hospital, Medical Center, Pharmacy, Beauty Salon, Clinic, Etc. Report Output: Thermal Printing, A4 Printing, Test Result Send To Mobile/Email

Product Description

All-in-one Multi Functional Physical Examination Scale

Specification:

Model
SH-T16

Height measurement
Measuring range: 20-210cm
Measurement accuracy: ±0.5cm
Division value: ±0.5cm or ±0.1cm adjustable

Weight measurement
Measuring range: 2.0-500kg
Measurement accuracy: ±0.1kg
Division value: ±0.1kg or ±0.01kg adjustable

Blood pressure measurement
Using upper arm Panasonic sphygmomanometer
Blood pressure: 0-299mmHg (0-39.9kpa)  pulse: 40- 180times/min
division value:   ±4mmHg     pulse reading 5%
Fat measurement
Measuring range: 5.0%-75%   division value: 0.1%

Temperature measurement
Body temperature range: 34°C-43°C
measurement error +0.2°C,   resolution: 0.1°C,
measuring distance 1-5CM
Blood oxygen test
Measurement accuracy: in the range of 70% ~ 100%,
measurement error is ±2%,  resolution: 1%
Blood glucose test
Detection range: 20-600mg/dl (1.1-33.3mmol/L)
Urinalysis
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, PH, etc.
Cholesterol test
Detection range: 100-400mg/dI (2059- 10.35mmol/L)
Four tests of blood lipids
Total cholesterol, high density lipoprotein, triglycerides,
low density lipoprotein
ECG test
Standard 12-lead
A4 color report
Color laser printer, high efficiency and large capacity, standard A4 paper printing medical report




All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 0


Product Description:

SH-T16 Health Checkup Kiosk Parameters:

Control System: 15.6 inches HD touch screen

Identification: face recognition,mobile phone/membership number; QR code/barcode/lC card (optional)

Height: high-precision height sensor, height range: 20-210cM, height accuracy 士0.5CM

Weight:industrial-grade large-capacity load cell, weighing range:5-500KG, weight accuracy:±0.1KG

Fat: range: 5.0%-75%, division value: 0.1%; can analyze muscle, bone mass, basal metabolism,etc.

Blood Pressure: electronic sphygmomanometer, range:0-299mmHg(0-39.9kpa) pulse: 40-180 beats/min

Blood Oxygen: finger clip oximeter, range:35%-100%; Temperature: infrared forehead temperature gun, optional wireless temperature measurement

Blood Glucose: 20-600mg/dl(1.1-33.3Mmol/L); 20% when blood glucose concentration> 75mg/dl (4.17mmol/L) Uric acid: range:3-20mg/dl(0.18-1.19mmol/L) Cholesterol: range:100-400mg/dl(2059-10.35mmol/L)

ECG Analysis: 12-lead ECG; rapid ECG(optional)

Four Blood Lipids: total cholesterol, high-density lipoprotein,triglyceride, low-density lipoprotein

Vision: vision, astigmatism, color weakness and color blindness, etc.

Hemoglobin: hemoglobin and hematocrit

Urinalysis: white blood cells, glucose, calcium ions, microalbumin, PH and other 14 health indicators

Data Output: WiFi/RJ45 network port to be transmitted to the internet or LAN;QR code communication

Docking System: APP, public health system, member management system, health software, etc.

Brand Promotion: can customize screen pictures, videos, audios, text slogans, etc.

Health Report: color laser printer, standard A4 paper printing medical report


All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 1

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 2

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 3

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 4

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 5



Certifications:

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 6

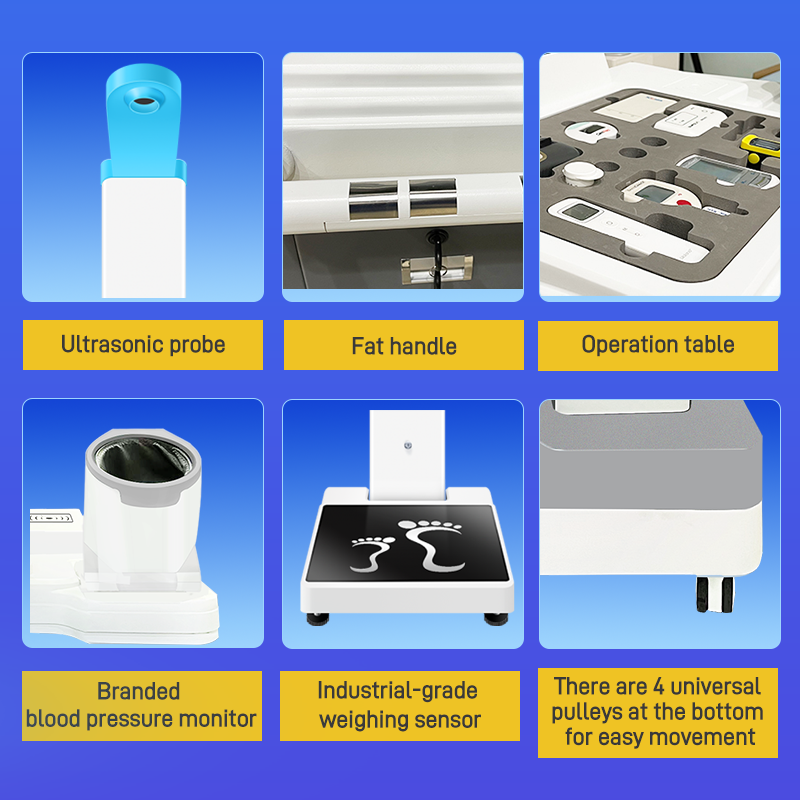

Details Images:


All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 7



All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 8

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 9

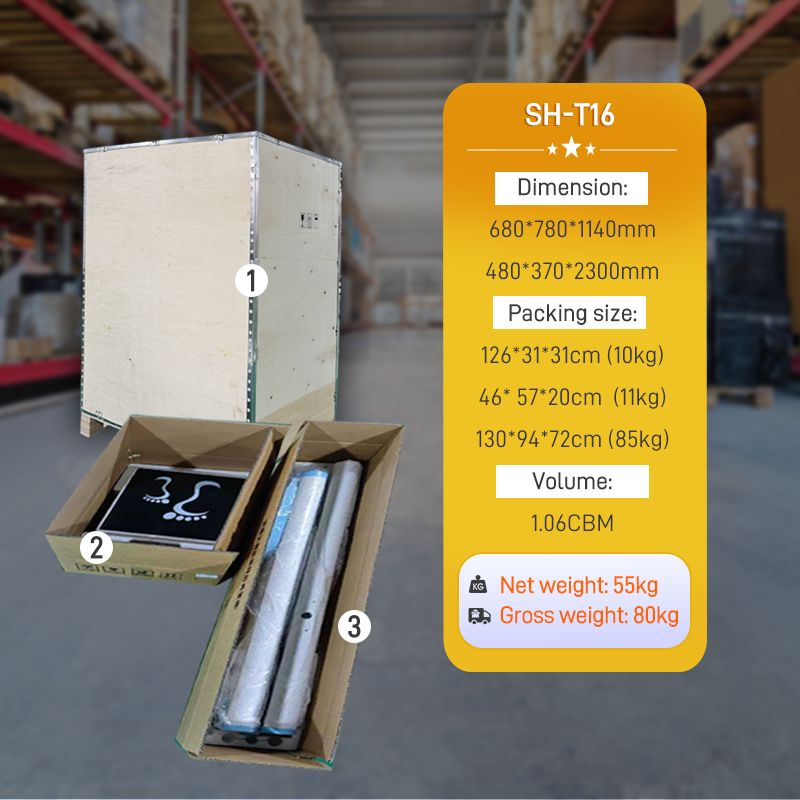

Packing & Delivery

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 10

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 11

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 12All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 13

Company Profile:

All in One Medical Health Check-up Kiosk Intelligent Health Kiosk 14
