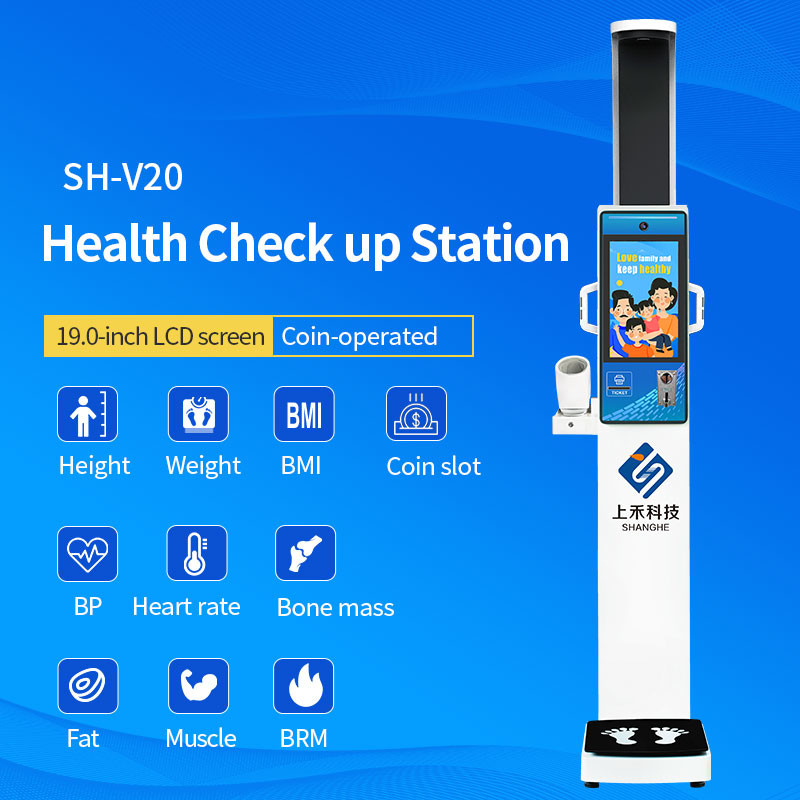

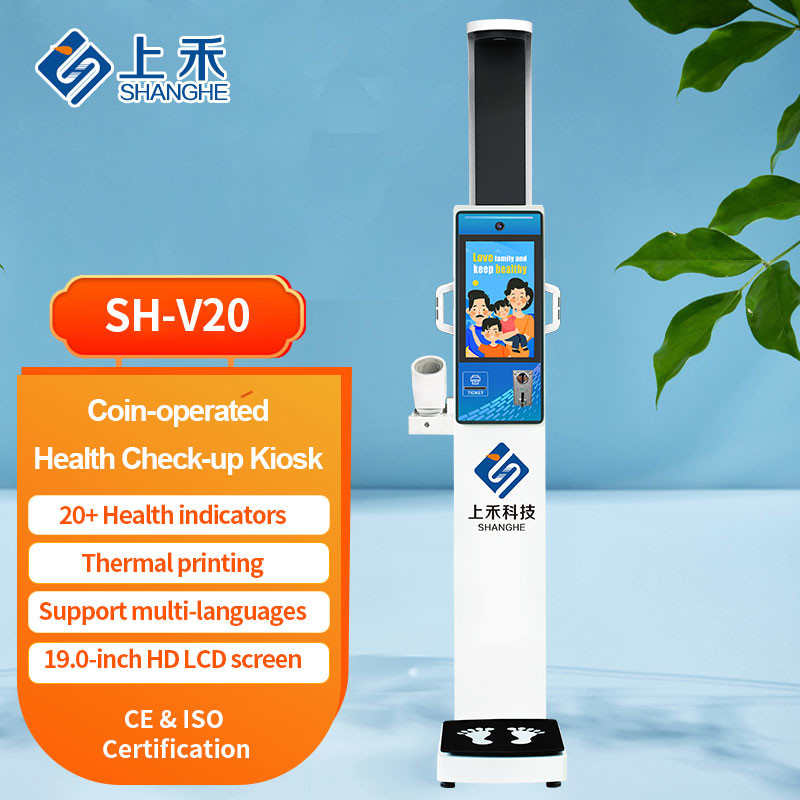

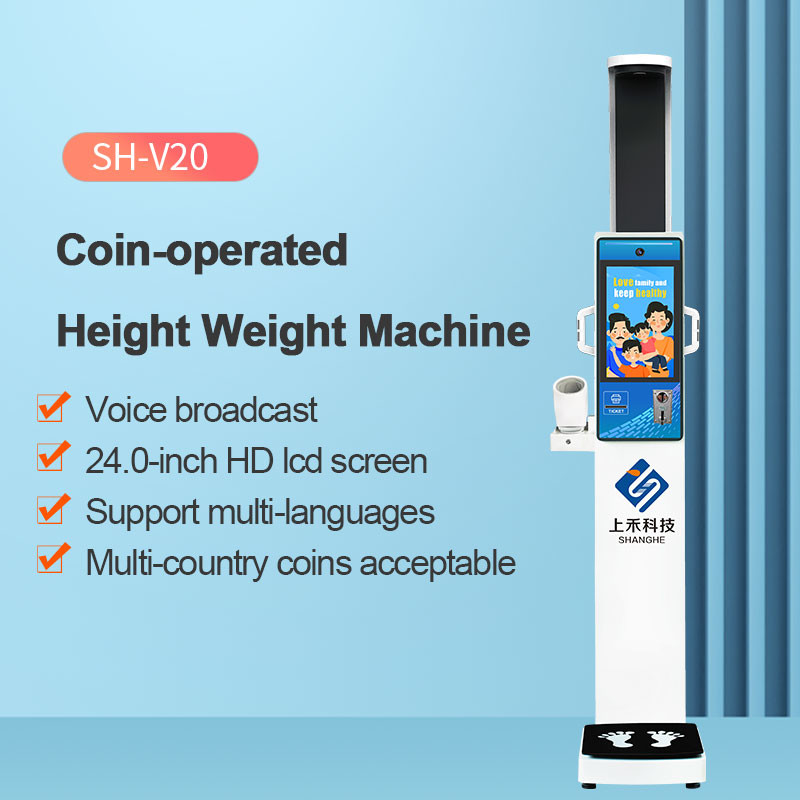

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO
Model Number: SH-V20
Document: SH-V20.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1719usd
Packaging Details: 179*41*21cm(20kg), 43*67*49cm(24kg), 0.3CBM
Delivery Time: 5-15 days
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: 3000 sets per month
  • Detail Information
  • Product Description

Detail Information

Product Name: Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine Keywords: Health Kiosk Body Check Machine
Material: Metal Cabinet Screen: 19.0 Inch LCD Screen,
Blood Pressure: 0-299mmHg(0kPa-39.9kPa) Basal Metabolism: 385Kca1-5000Kcal
Color: White/blue/customized Data Transfer: Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Report Output: Thermal Printing, A4 Printing, Test Result Send To Mobile/Email Language: Supports 17 Mainstream Languages, Customizable Languages

Product Description

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine


Product Specifications:

Model
SH-V20
Measurement Items
Height, Weight, BMI, Blood Pressure, Heart Rate,Body fat analyzer

Height Measurement

Measure range: 20-205cm  accuracy: ±0.5cm
ultrasonic probe

Weight Measurement

Measure range: 5-500kg    accuracy: ±0.1kg
precise balanced sendor

Panasonic Blood Pressure
Measure range: 0-299mmhg(0-39.9kpa) ; 40-180 heartbeat/minute
Measure accuracy: ±4mmHg;

Fat Measurement
Measure range: Fat:5.0- 75% ; Basal metabolism:385kcal- 5000kcal;
Electrode method:Four electrodes, eight electrodes(optional)
Display Mode
19.0 inch LCD screen,
(Display date temperature in real time ,Play advertising video)
Print
Thermal automatic printing
Coin operated(Optional)
Intelligent multi-currency recognition
Power Supply Voltage
AC160v-250v,50HZ
Data Output Format
RS-232, Wifi, Bluetooth, 3G/4G,etc.
Identify(Optional)
QR code/barcode, Enter account/mobile number,IC/ID card, etc.
Overall dimension
585*575*2350mm /LWH(mm)
Packing Size
180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM


Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 0


Product Description:

SH-V20 Health Checkup Kiosk Functions:

1.Ergnomic shape design

2.Fully automatic measurement of height and weight, automatic sensing system

3.Ultrasonic technology to measure height (temperature compensation)

4.Precision balance beam resistance strain sensor

5.Intelligent calculation of BMl

6.Automatic measurement of blood pressure (high pressure, low pressure), pulse (heart rate)

7.4-electrode human bioelectrical impedance method (BIA); 8-electrode (optional)

8.19-inch screen digital LCD display

9.Coin operated/paper money (optional)

10.High-speed thermal printing, automatic printing of measurement results

11.Displays indoor temperature and current time

12.Data transmission: RS232 serial port,WiFi (standard); Bluetooth/4G/RJ45/cloud interface (optional), etc.

13.It can be connected with a computer, and the results are transmitted to the customer's Software.

14.Supports multiple languages and can switch languages on the screen.

15.Expansion: blood sugar, blood oxygen, body temperature, face recognition, barcode/QR code, IC/ID card etc.


Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 1

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 2

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 3

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 4Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 4

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 6

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 7

Certifications:

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 8

Hot Sale Products:

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 9

Packaging&Shipping:


Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 10

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 11

Coin Operated Health Diagnostic Equipment Health Kiosk Body Check Machine 12

What is the SHANGHE Service?:

1. 24 hours to reply your inquiries and 72 hours solution response.

2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
