Detail Information
Product Description

Detail Information
Product Name:	Medical Health Kiosk One-Stop Self-Service Full Body Check Station With Telemedicine Features Steel Blood Pressure Kiosk	Keywords:	Medical Health Checkup Kiosk
Blood Pressure Measurement:	0-299mmHg(0kPa-39.9kPa); Pulse Range:40-180 Beats/min	Fat Measurement:	Measure Range: Fat:5.0- 75% ; Basal Metabolism:385kcal- 5000kcal
Power Supply Voltage:	AC160v-250v,50HZ	Data Transfer:	Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Languages:	Supports 27 Languages Including English, Can Switch Languages Freely	Customized:	Language, Color, Logo, Sticker, Etc
Dimension:	6807801140mm; 4803702300mm	Packing Size:	1263131cm (10kg); 46* 5720cm (11kg); 13094*72cm（85kg); 1.06CBM

Product Description

SH-T16 Class II Clinical Preventive Health Check Kiosk AI-powered Health Assessment Kiosk with A4 Printer

Product Description:

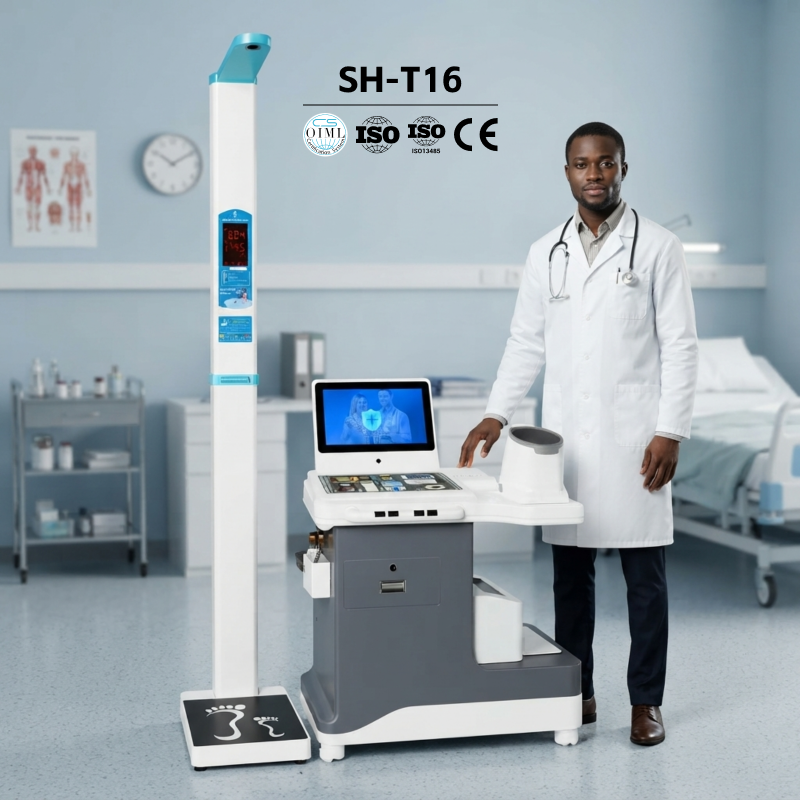

SH-T16 Smart Health Checkup Kiosk – All-in-One Health Screening Station
1. Intelligent OS & 15.6" HD Touch Screen Powered by a smart operating system with a 15.6-inch LCD capacitive touch screen. Fully customizable interface for brand videos, promotional images, and logo display — turn every health check into a marketing opportunity.

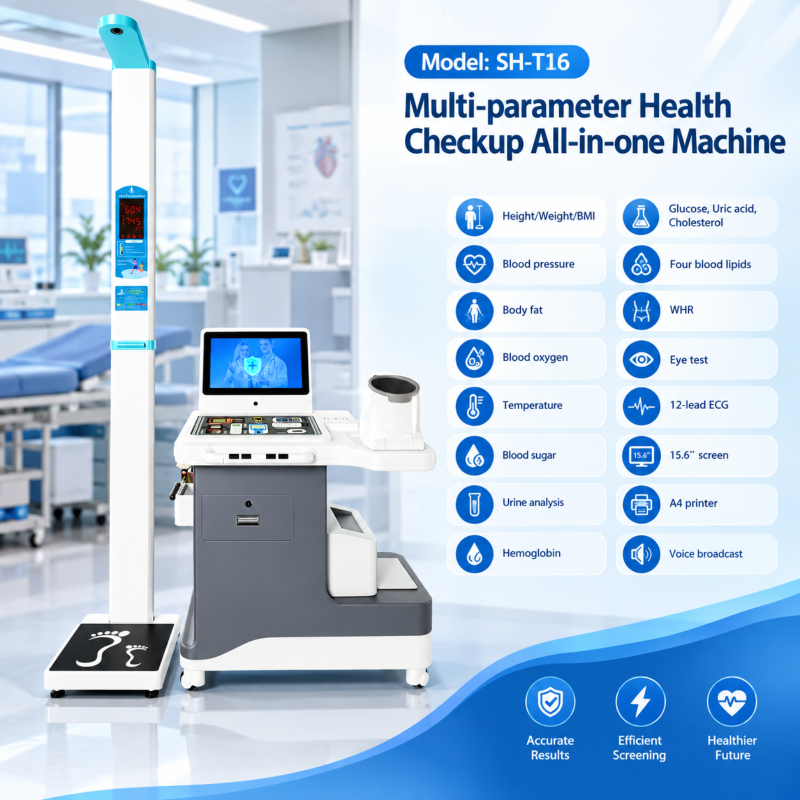

2. Comprehensive Health Screening in One Station Covers 35+ health metrics including blood pressure, blood oxygen, body temperature, blood sugar, body fat analysis (body fat %, body water %, muscle mass %, basal metabolic rate, inorganic salts), waist-to-hip ratio, urine analysis, hemoglobin, glucose, uric acid, cholesterol, four blood lipids, 12-lead ECG and professional eye tests (visual acuity, astigmatism, color blindness). One kiosk replaces multiple standalone devices.
3. AI Robot Voice Guide & Automatic Results Built-in AI robot provides step-by-step voice guidance throughout the entire measurement process. Measurement results are announced automatically via voice broadcast — no staff training required, fully self-service operation.
4. Non-Contact Height Measurement & Dual-Arm Blood Pressure Advanced ultrasonic/millimeter wave technology measures height without physical contact for improved hygiene. Intelligent pressurization with oscillometric method supports both left and right arm blood pressure measurement (range: 0–299 mmHg; pulse: 40–180 beats/min).
5. Flexible User Identification Standard face recognition login + manual input mode. Fast, secure, and contactless user registration for seamless workflow.

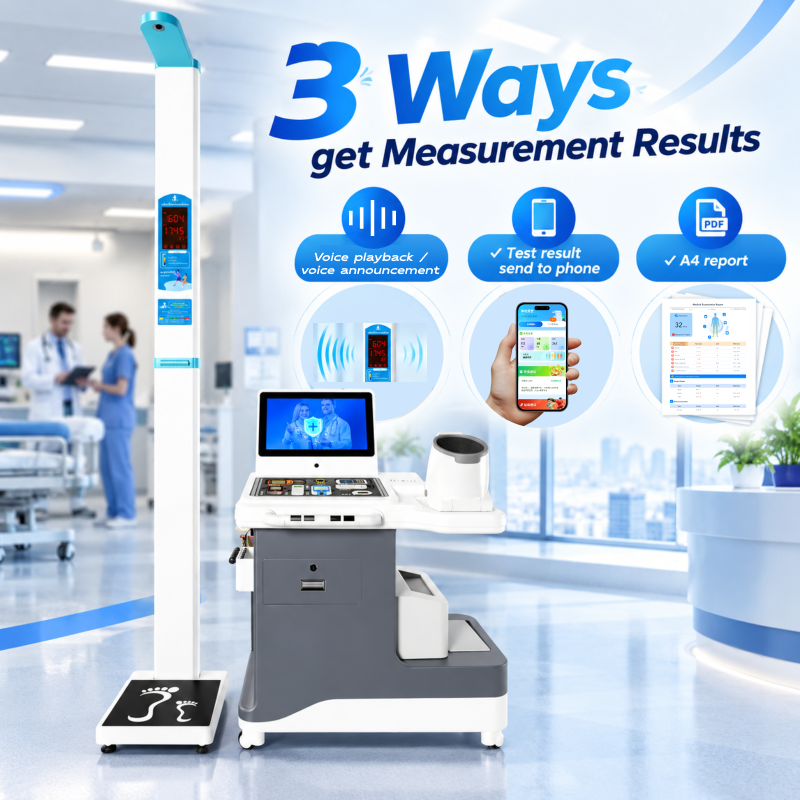

6. Three Report Delivery Options ①Instant mobile phone report ②Downloadable digital report — meeting the needs of every user③ A4 Printing.

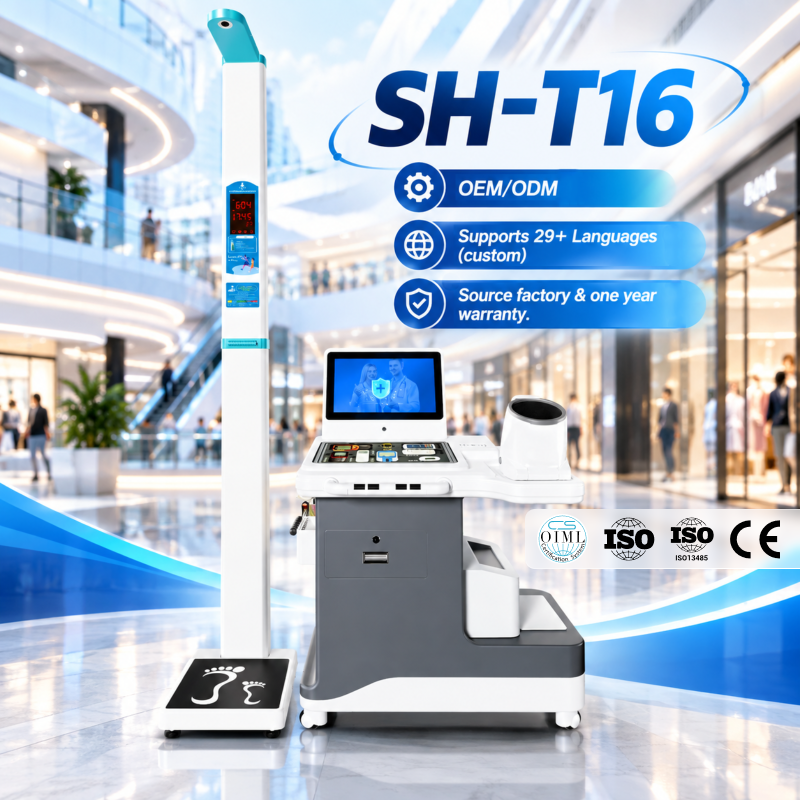

7. 29 Languages Supported Freely switch between English and 28 other languages — ideal for international markets, multi-ethnic regions, and cross-border deployments.
8. Full Data Integration Standard: RS232 serial port + WiFi. Optional: Bluetooth, 4G, cloud API interface. Data seamlessly transmits to HIS/LIS systems, mobile apps, PC platforms, and third-party software — ready for EMR/EHR integration out of the box.
9. Optional Modules for Local Markets Customizable add-ons including Thailand IC/ID card reader, QR code scanner, and more. Tailor the kiosk to your regional requirements.
10. Wide Application Scenarios Clinics · Hospitals · Pharmacies · Health Centers · Nutrition Centers · Gyms · Shopping Malls · Corporate Wellness Programs · Community Health Stations

Product Specifications:

Model	SH-T16
Languages	Supports 29 languages including English, can switch languages freely.
Weight Measurement	Precision balance beam resistive strain gauge pressure sensor weighing
Weight Range	2.0-500kg, accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Height Measurement	Precision balance beam resistive strain gauge pressure sensor weighing
Height Range	20-210cm, accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
Blood pressure	Intelligent pressurization technology, oscillometric measurement method (Supports left and right arm)
	Pressure: 0-299mmHg(0kPa-39.9kPa), pulse: 40-180 beats/min
	Pressure:3mmHg(±0.4kPa), pulse rate: Accuracy is 5%
Get report	A4 printing; scan QR code by phone to view report and download the A4 report.
Screen Display	HD LCD 15.6-inch display touch screen can be customized logo.
Body Fat	4-electrode human bioelectrical impedance method; Range: 5%-75% Health indicators: body fat rate, body water rate, muscle mass rate, basal metabolic rate, inorganic salts, etc.
Body Temperature	Infrared forehead temperature gun, optional wireless temperature measurement.
Blood Oxygen	Finger clip type oximeter Fast and accurate.
Blood Sugar	Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Vision	Astigmatism, color weakness and color blindness, etc.
WHR	Waist circumference and hip measurement
Urine Analysis	14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc.
Hemoglobin	Hemoglobin and hematocrit
Glucose	Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Uric Acid	Measuring range: 3-20mg/dl (0.19-1.19mmol/L)
Cholesterol	Measuring range: 100-500mg/dl (2.29-12.93mmol/L)
Four Blood Lipids	Total cholesterol, HDL, triglycerides, LDL
12-lead ECG	Standard 12-lead, dynamic electrocardiogram
Expansion	Lung function, cholesterol, urine analysis, four blood lipids, alcohol test, hemoglobin, psychological test, A4 printer, etc.
Data Transfer	Standard: WiFi, RJ45, cloud interface; optional: 4G, etc. Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
Voltage	AC100V-240V(50Hz/60Hz); Power: ≤15W
Dimension	6807801140mm(LWH) 4803702300mm (LWH)
Packing	Packed in 1 wooden box and two carton boxes, 1263131cm (10kg); 46* 5720cm (11kg); 13094*72cm (85kg); Net: 80kg, gross: 106kg; Volume: 1.06CBM

Product Details:

SH-T16 Class II Clinical Preventive Health Check Kiosk AI-powered Health Assessment Kiosk with A4 Printer

Company Profile:

SH-T16 Class II Clinical Preventive Health Check Kiosk AI-powered Health Assessment Kiosk with A4 Printer

Tag:

Product Details:
Place of Origin:	Henan, China
Brand Name:	SHANGHE
Certification:	CE/ISO13485/OMIL
Model Number:	SH-T16
Document:	SH-T16.pdf
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	4450usd
Packaging Details:	1263131cm (10kg); 46* 5720cm (11kg); 13094*72cm（85kg); 1.06CBM
Delivery Time:	5-15 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	3000 sets per month
