Name: SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic
Brand: Zhengzhou shanghe electronic technology co. LTD
SKU: SH-T17
Price: 11399 USD
Availability: InStock

Detail Information
Product Description

Detail Information
Product Name:	SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic	Keywords:	Medical Equipment Health Checkup Kiosk
Certificate:	CE/ISO13485/OMIL	Material:	Metal Cabinet
Customized:	Language/Logo/sticker/color	Fat Measurement:	Measure Range: Fat:5.0- 75% ; Basal Metabolism:385kcal- 5000kcal;
Blood Pressure:	0-299mmHg(0kPa-39.9kPa); Pulse Range:40-180 Beats/min	Power Supply Voltage:	AC100V-240V(50Hz/60Hz);
Languages:	Supports 27 Languages Including English, Can Switch Languages Freely	Usage:	Hospital, Clinic, Pharmacy, School, Gym, Shopping Mall, Etc.

Product Description

SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic

Product Description:

1. Dual HD Touchscreens + Custom Branding 15.6‑inch main display + 7‑inch secondary screen – dual‑screen synergy for clear data presentation and smooth operation. Supports custom boot logo & UI interface to reinforce your brand identity – ideal for pharmacies, health check centres, corporate wellness rooms, and community clinics.
2. 15+ Health Indicators, One Complete Solution Covers everything from basic vitals to chronic disease management: Basic measurements: Height, Weight, BMI, Body Temperature, Blood Oxygen, Pulse Cardiovascular assessment: Blood Pressure, 12‑lead ECG Metabolic monitoring: Blood Glucose, Uric Acid, Total Cholesterol, and 4‑item blood lipids (TC, TG, HDL, LDL) Body composition analysis: Water, Fat, Muscle, Bone mass, etc. Vision screening: Visual acuity, Astigmatism, Colour blindness test Waist‑to‑Hip Ratio: automatically calculated for obesity risk evaluation Urinalysis: 11‑parameter dipstick test (test strips required) Haemoglobin: instant anaemia screening
3. Medical‑Grade Accuracy, Effortless Operation Built with medical‑grade sensors and algorithms for reliable, repeatable results. Voice prompts and on‑screen animation guide users step by step – no professional training needed, even the elderly can operate independently.

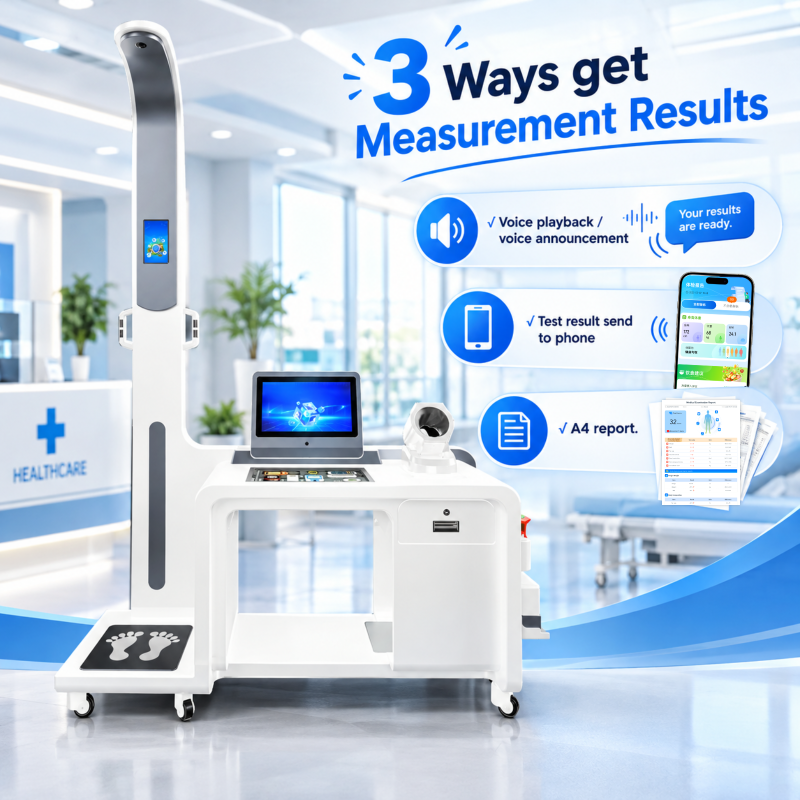

4. Smart Data Management – No More Manual Recording All test results are automatically compiled into a comprehensive health report. Supports Wi‑Fi, Bluetooth, and 4G data upload, seamlessly connecting to hospital HIS or cloud‑based health management platforms. “Share as a Gift” function: one‑tap send the full report to the user’s mobile phone – enhancing user engagement and service value.
5. A4 Printer Instantly prints a complete test report on the spot – perfect for paper filing, insurance claims, or on‑site delivery to clients.
6. Versatile for Any Commercial Setting Compact footprint with movable castors – plug‑and‑play. Ideal for: chain pharmacies, primary care clinics, corporate clinics, senior care facilities, school health centres, gyms, trade shows, and promotional events.

SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic

Product specification:

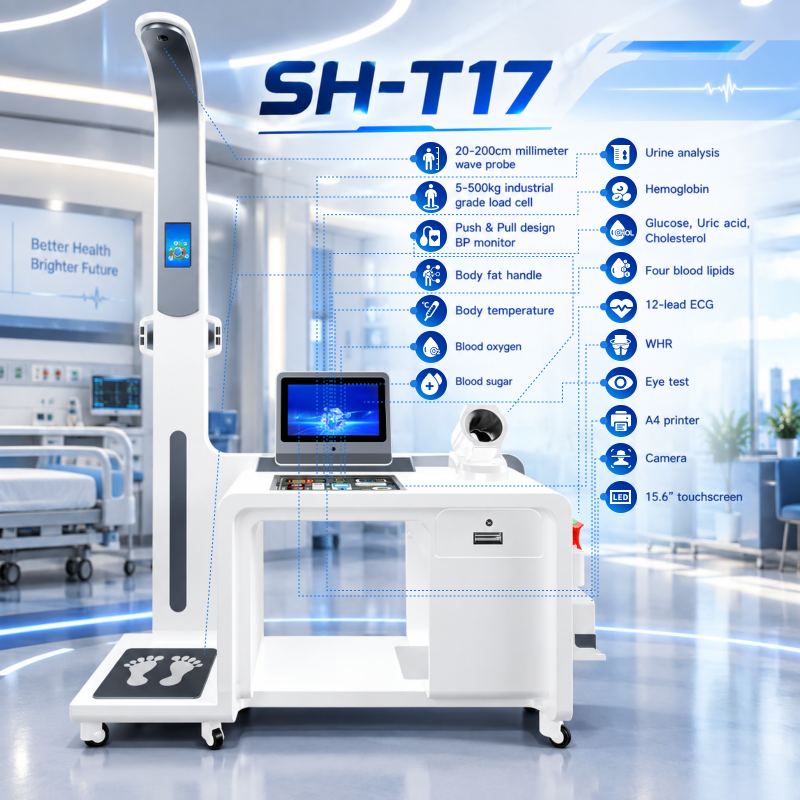

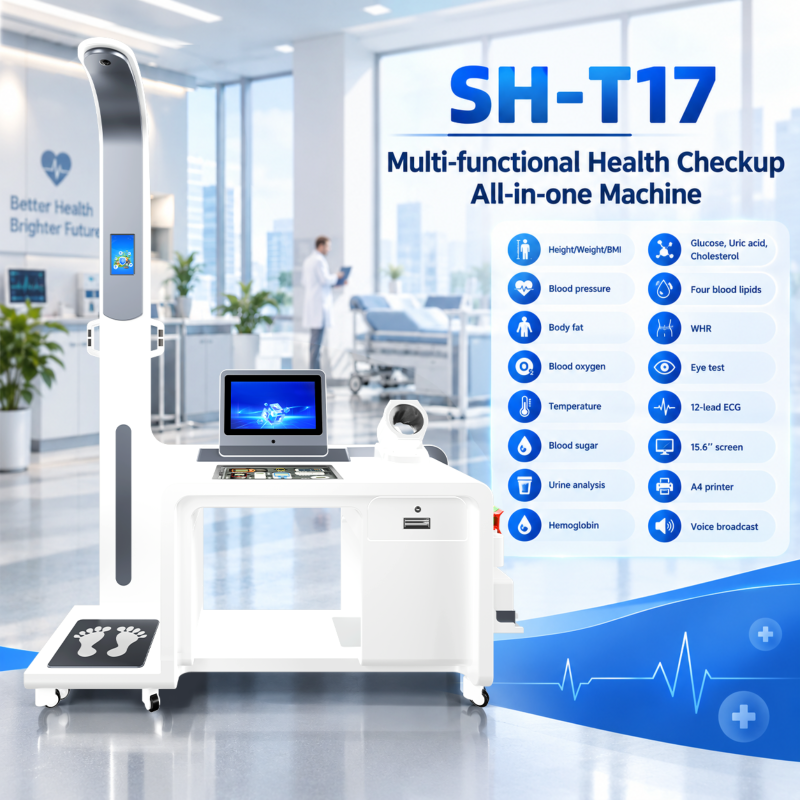

Model	SH-T17 Smart Health Management All-in-One Machine
HD LCD Screen	15.6-inch + 7-inch HD LCD screen, play videos and pictures, intelligent display of results
Intelligent Recognitio	Standard face recognition login, user input login, etc. Optional: IC/ID card, QR code scanning, etc. (other methods can be customized)
Height	Measuring range: 20-205cm; accuracy: ±0.5cm; division value: 0.5cm or 0.1cm adjustable
Weight	Measuring range: 2.0-500kg; accuracy: ±0.1kg; division value: 0.1kg or 0.01kg
Blood Pressure	Medical grade upper arm tube pulse wave blood pressure monitor, pulse wave blood pressure measurement method, 17-42cm, accuracy within ±2mmHg
Body Fat	BIA human bioelectrical impedance measurement technology, body fat mass, body fat percentage, basal metabolism, body water mass, body water percentage, body bone mass, body muscle mass, body muscle percentage, etc.
Body Temperature	Temperature range: 32℃-42.9℃ Measurement error: ±0.2℃ Resolution: 0.1℃ Measuring distance: 1-5cm
Blood Oxygen	Measurement accuracy: within the range of 70%~99% Measurement error is ±2% Resolution: 1%
Blood Sugar	Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Uric Acid	Measuring range: 3-20mg/dl (0.19-1.19mmol/L)
Cholesterol	Measuring range: 100-500mg/dl (2.29-12.93mmol/L)
Waist Circumference	Smart Bluetooth waist ruler, detect waist circumference, hip circumference, waist-to-hip ratio
Urinalysis	14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc.
12-lead ECG	Standard 12-lead, dynamic electrocardiogram
Four Blood Lipids	Total cholesterol, HDL, triglycerides, LDL
Hemoglobin	Hemoglobin and hematocrit
Vision	Test content: left and right eye vision test, left and right astigmatism test, color weakness and color blindness test
Mental Health Assessment	Comprehensive psychological assessment in 11 aspects
TCM	Yang deficiency constitution, Yin deficiency constitution, Qi deficiency constitution, Phlegm damp constitution, Damp-heat constitution, Blood stasis constitution, Special constitution, Qi stagnation constitution, Peaceful constitution
Other Items	The device supports more than 20 physical examination items and more than 100 health indicators, which can be flexibly selected according to needs (customizable and expandable)
Data Transfer	Supports transmission to the Internet or LAN via WIFI/RJ45 network port, as well as QR code communication, data export, etc. (customizable and docking data)
A4 Print Report	A4 printing
Optional Functions	Bone density, rapid ECG, alcohol test, arteriosclerosis, glycosylated hemoglobin, BIM turntable,
Dimension	15505302318mm(LWH)
Packing size	Packed in 1 wooden box, 17006401380mm(110kg) Net: 83kg, gross: 110kg; Volume: 1.5CBM

Product details:

SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic

Hot sale product:

SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic

About company:

SH-T17 Medical Kiosk Self Service Intelligent Detection Kiosk All-in-One Multifunctional Health Diagnostic

Tag:

Product Details:
Place of Origin:	Henan, China
Brand Name:	SHANGHE
Certification:	CE/ISO13485/OMIL
Model Number:	SH-T17
Document:	SH-T17-2.pdf
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	11399usd
Packaging Details:	17064138cm(110kg)
Delivery Time:	5-15 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	6000 sets per month
