Detail Information
Product Description

Detail Information
Product Name:	Body BMI Measuring And Human Body Element Detection Body Composition Analyzer With Printer Fat Analyzing Machine	Keyword:	Body Composition Analyzer
Electrode:	8 Electrodes	Frequency:	20KHz,100KHz
Certificate:	CE/ISO13485/OMIL	Customized:	Language/Logo/sticker/color
Packing:	1794121cm(20kg), 436749cm(24kg)	Dimension(mm):	5504302350mm
Languages:	Supports 29 Languages Including English, Can Switch Languages Freely	Data Transfer:	Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45

Product Description

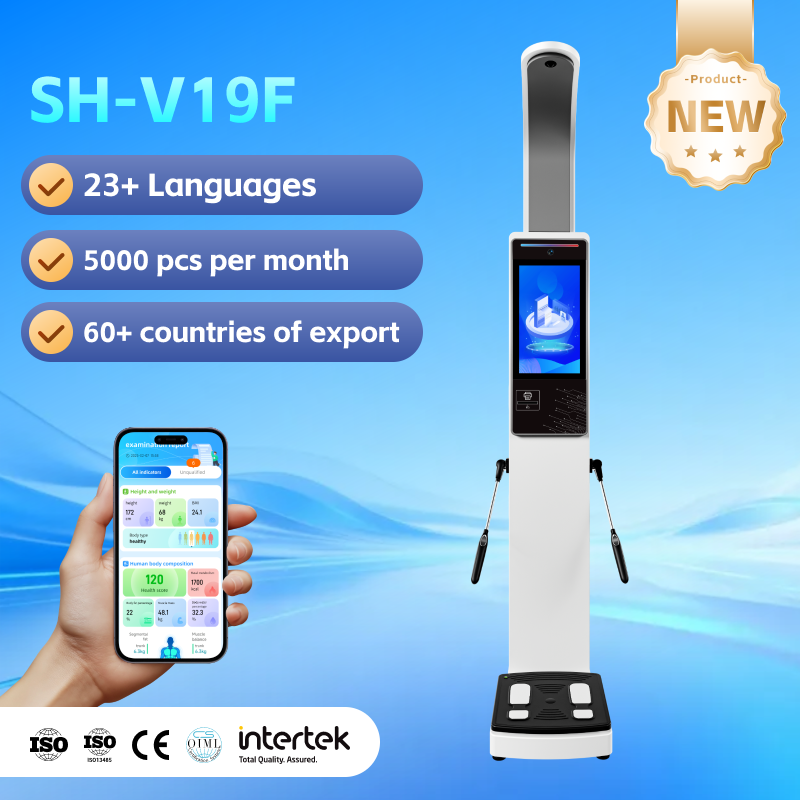

Body BMI Measuring and Human Body element Detection Body Composition Analyzer With Printer Fat Analyzing Machine

Product specification:

Model	SH-V19F
Intelligent Systems	Smart operating system；facial recognition function
Weight Measurement	Precision balance beam resistive strain gauge pressure sensor weighing
Weight Range	2.0-500kg, accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Height Measurement	Precision balance beam resistive strain gauge pressure sensor weighing
Height Range	20-210cm, accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
Fat Measurement	Principle: multi-frequency bioelectrical impedance test
	Method: 8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
	Frequency: 20KHz,100KHz
	Impedance measurement range: 10-2000Ω
	Applicable Age: 6-99 years old
	Duration: ≤1 minute
	Segments: 5 parts (left arm, right arm, trunk, left leg, right leg)
Coin operated (optional)	The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness.
Optional Expansion	Facial recognition, IC/ID card reader, barcode scanner, etc.

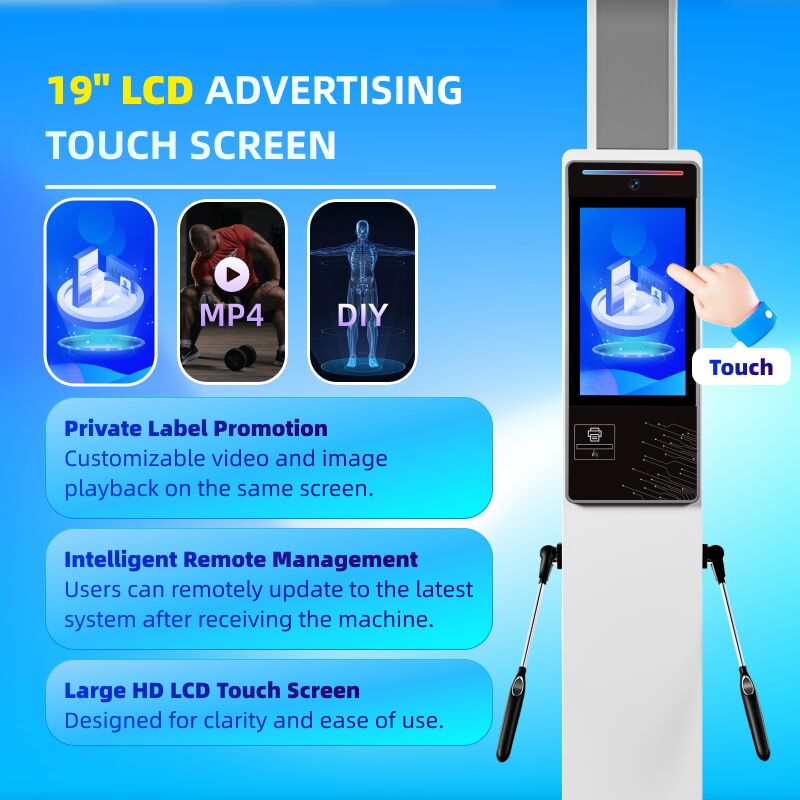

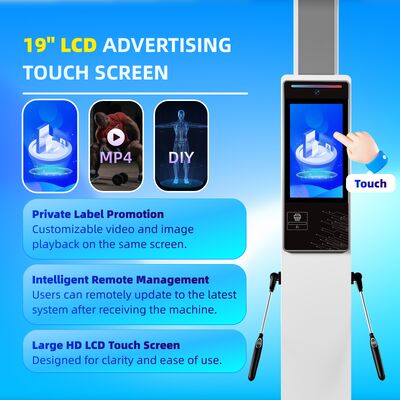

Screen Display	HD LCD 19-inch display touch system, play pictures and videos in standby mode.
Data Storage	More than 1 million data store and support USB flash drive export, can communicate with third-party health system data, support automatic members input, health screening, historical query, data statistical.
Data Transfer	Standard: RS232, WiFi; Optional: Bluetooth, 4G, RJ45, etc. Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.

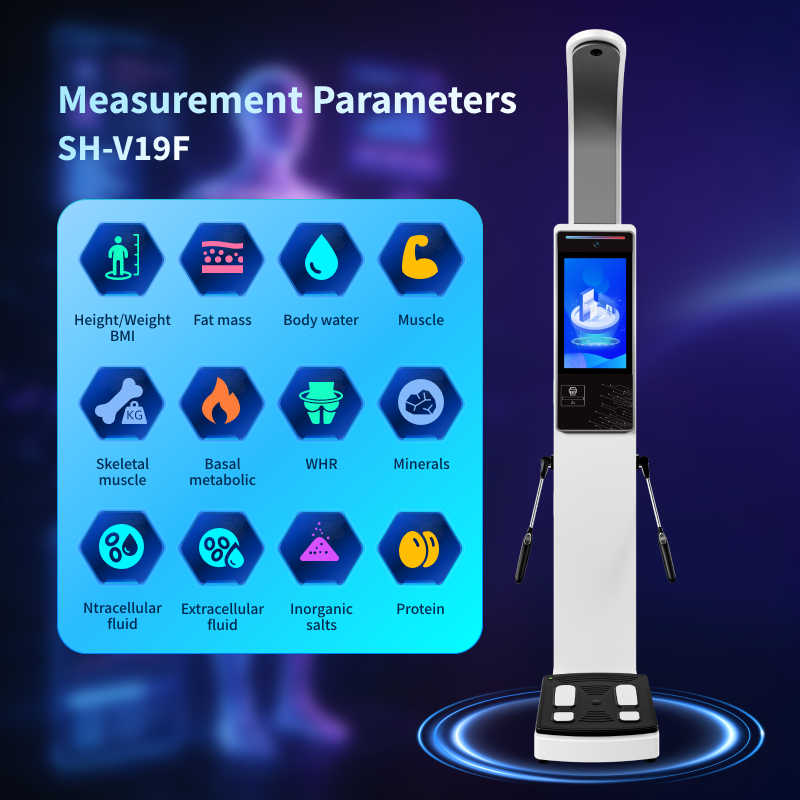

Printing Output	Time, date, age, gender, body age, health score, weight, height, body mass index (BMI), body shape, ideal weight, weight control, healthy weight range, fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, mineral content; intracellular fluid, extracellular fluid, inorganic salt content, bone mass, protein mass, protein percentage, subcutaneous fat mass, subcutaneous fat percentage, lean body mass, body cell mass; segmental fat mass, segmental muscle mass; body shape determination, obesity degree, visceral fat level; fat control, muscle control; exercise advice, customizable header and footer.

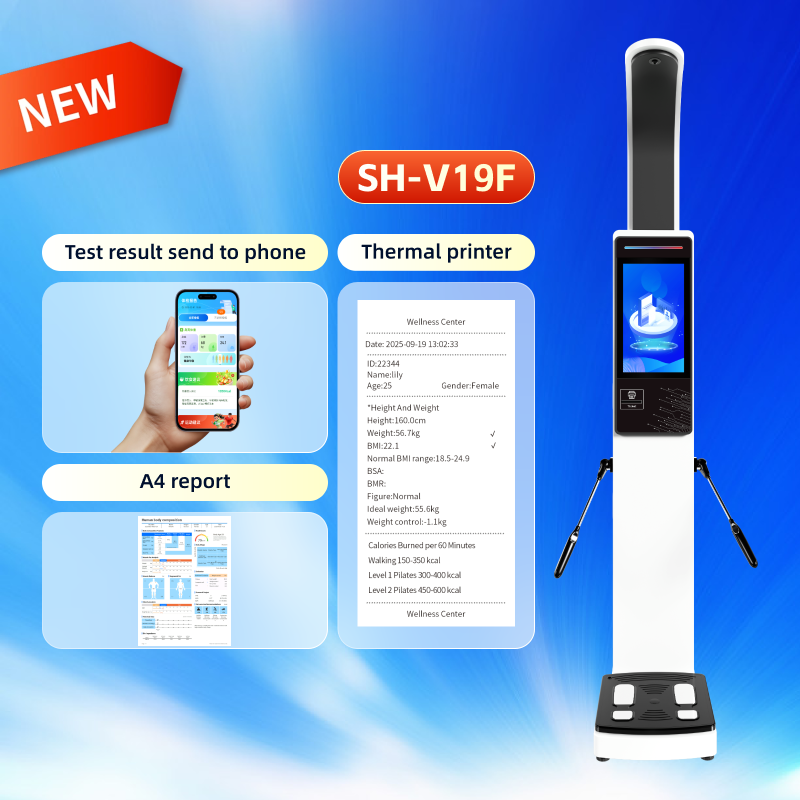

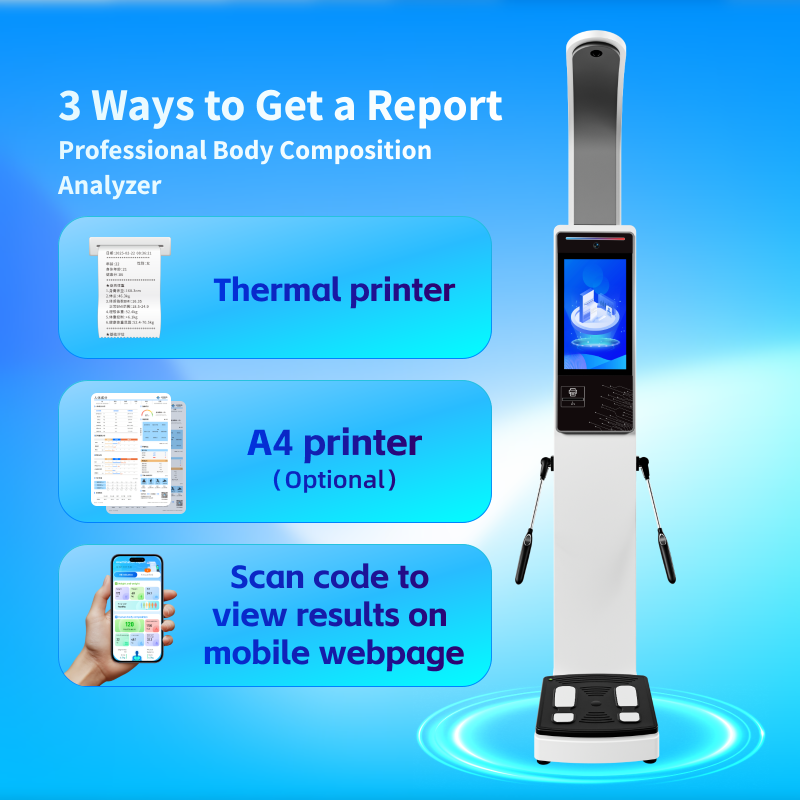

Health Report View	Thermal printing, local report, test result send to mobile, A4 printing/ Email /cloud platform (optional)
Portable	Easy to carry and transport; equipped with wheels for easy movement.
Voltage	AC100V-240V/12V DC power
Dimension	55cm42cm235cm/LWH Packing size:1784922cm(20kg); 684940cm(20kg)

Certification:

Product description:

1. The SH-V19F Body Composition Analyzer Machine is Equipped with a 19-inch LCD touchscreen, it displays real-time indoor temperature and time in standby mode, while supporting customized video and image playback for brand promotion. The machine integrates a coin acceptor (with optional banknote and Nayax card payment) to enable profitable self-service operation, alongside an AI voice-guided assistant that walks users through each step and automatically broadcasts results.
2. Utilizing non-contact ultrasonic/millimeter-wave technology for height measurement and a precision balanced beam resistive strain sensor for weight, it ensures accurate, reliable data.
3. The 8-point tactile electrode system and multi-frequency bioelectrical impedance analysis (BIA) at 20KHz and 100KHz deliver comprehensive body composition metrics—including body fat percentage, total body water, muscle mass, basal metabolic rate, and inorganic salts—across five body segments (left arm, right arm, trunk, left leg, and right leg).
4. Supporting 28 languages with free switching, and suitable for users aged 6 to 99, the SH-V19F offers a versatile, user-friendly, and revenue-generating solution for fitness centers, malls, clinics, and public spaces. Optional face recognition further enhances personalization and data tracking.

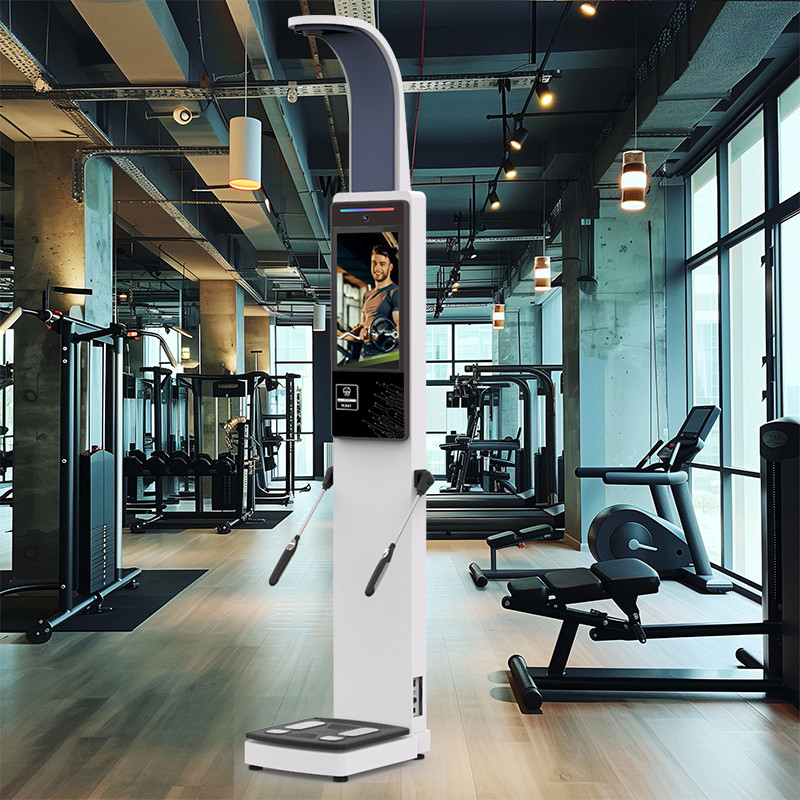

5. Application Scenarios: Our 8‑electrode body composition analyzer is used in hospitals, clinics, nutrition centers, wellness centers, gyms, beauty salons, and sports clinics. It delivers accurate segmental data on muscle, fat, and hydration to guide clinical diagnosis, dietary planning, fitness coaching, and injury rehabilitation. Independent limb‑trunk measurement enhances precision, making it indispensable for health professionals.

Product details:

Hot sale product:

Body BMI Measuring and Human Body element Detection Body Composition Analyzer With Printer Fat Analyzing Machine

About company:

Body BMI Measuring and Human Body element Detection Body Composition Analyzer With Printer Fat Analyzing Machine

What is the SHANGHE Service?

1. 24 hours to reply your inquiries and 72 hours solution response.

2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!

Tag:

Product Details:
Place of Origin:	Henan, China
Brand Name:	SHANGHE
Certification:	CE/ISO13485/OMIL
Model Number:	SH-V19F
Document:	SH-V19F-2025.pdf
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	1720usd
Packaging Details:	1794121cm(20kg), 436749cm(24kg) 0.3CBM
Delivery Time:	5-15 days
Payment Terms:	L/C,D/P,D/A,T/T,Western Union
Supply Ability:	6000 sets per month
