Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen
Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen
Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen

Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO13485/OMIL
Model Number: SH-V9F
Document: SH-V9F-2025.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1620usd
Packaging Details: 179*41*21cm(20kg), 43*67*49cm(20kg), 0.3CBM
Delivery Time: 5-18 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 6000 sets per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen Keywords: Body Composition Analyzer Machine
Customized: Language/Logo/sticker/color Electrode: 8 Electrodes
Frequency: 20KHz, 100KHz Applicable Age: 6-99 Years Old
Segments: 5 Parts (left Arm, Right Arm, Trunk, Left Leg, Right Leg) Screen: 10.2 Inch LCD Touch Screen
Data Transfer: RS232 Serial Port,WiFi (standard); Bluetooth/4G/cloud Interface (optional) Languages: Supports 29 Languages Including English, Can Switch Languages Freely.

Product Description

Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen



Product specification:


Model
SH-V9F
Intelligent Systems
Smart operating system；facial recognition function
Weight Measurement
Precision balance beam resistive strain gauge pressure sensor weighing
Weight Range
2.0-500kg, accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Height Measurement
Precision balance beam resistive strain gauge pressure sensor weighing
Height Range
20-210cm, accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable





Fat Measurement
Principle: multi-frequency bioelectrical impedance test
Method: 8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz,100KHz
Impedance measurement range: 10-2000Ω
Applicable Age: 6-99 years old
Duration: ≤1 minute
Segments: 5 parts (left arm, right arm, trunk, left leg, right leg)
Coin operated (optional)
The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness.
Optional Expansion
Facial recognition, IC/ID card reader, barcode scanner, etc.
Screen Display
HD LCD 10.2-inch display touch system, play pictures and videos in standby mode.
Data Storage
More than 1 million data store and support USB flash drive export, can communicate with third-party health system data, support
automatic members input, health screening, historical query, data statistical.
Data Transfer
Standard: RS232, WiFi; Optional: Bluetooth, 4G, RJ45, etc. Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.





Printing Output

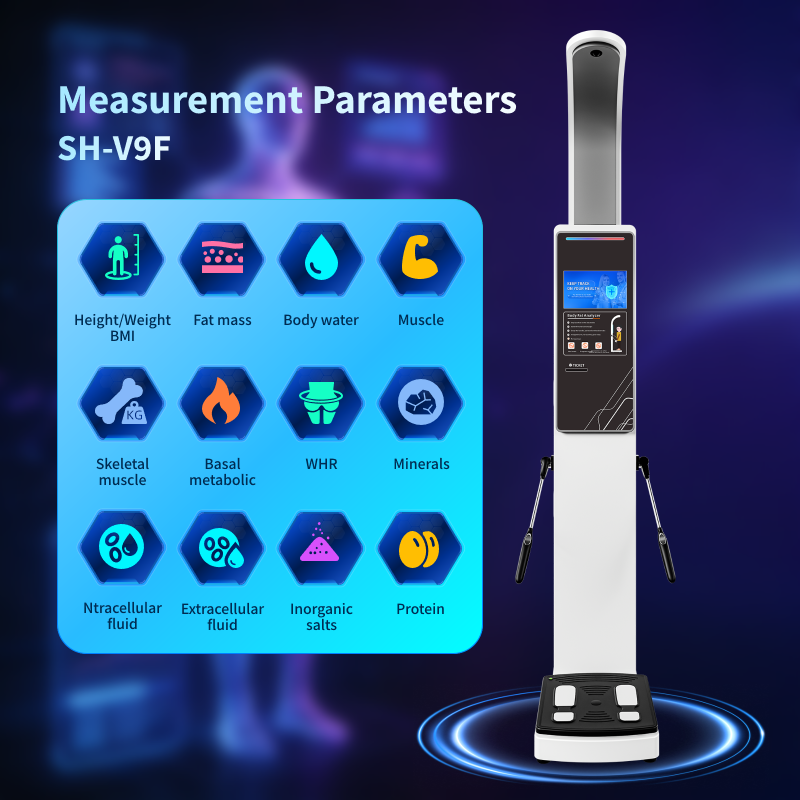

Time, date, age, gender, body age, health score, weight, height, body mass index (BMI), body shape, ideal weight, weight control, healthy weight range, fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass,
muscle percentage, basal metabolism, waist-to-hip ratio, mineral content; intracellular fluid, extracellular fluid, inorganic salt content, bone mass, protein mass, protein percentage, subcutaneous fat mass, subcutaneous fat percentage, lean body mass, body
cell mass; segmental fat mass, segmental muscle mass; body shape determination, obesity degree, visceral fat level; fat control, muscle control; exercise advice, customizable header and footer.
Health Report View

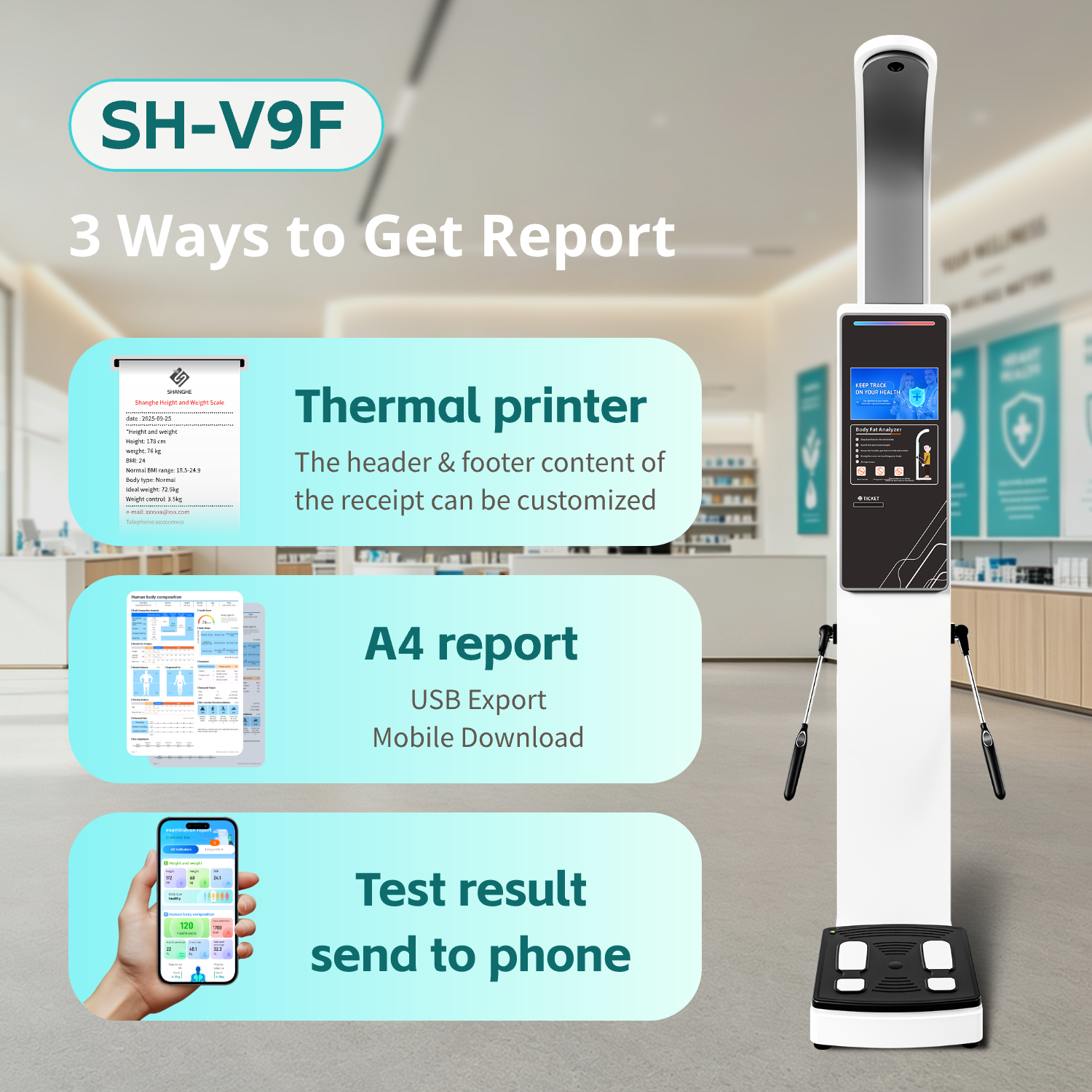

Thermal printing, local report, test result send to mobile, A4 printing/ Email /cloud platform (optional)
Portable
Easy to carry and transport; equipped with wheels for easy movement.
Voltage
AC100V-240V/12V DC power
Dimension
55cm*42cm*235cm/L*W*H
Packing size:178*49*22cm(20kg); 68*49*40cm(20kg)



Certification:

Body Comosition Machine Bioimpedance Weighing Scale BMI Body Fat Measuring Instruments With Tablet Big Screen


Product description:

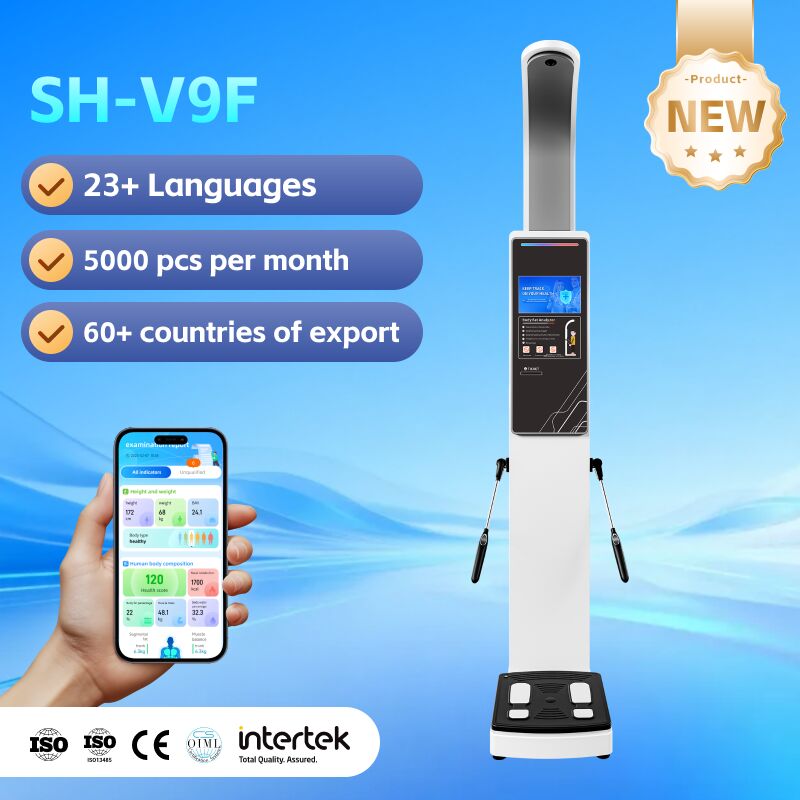

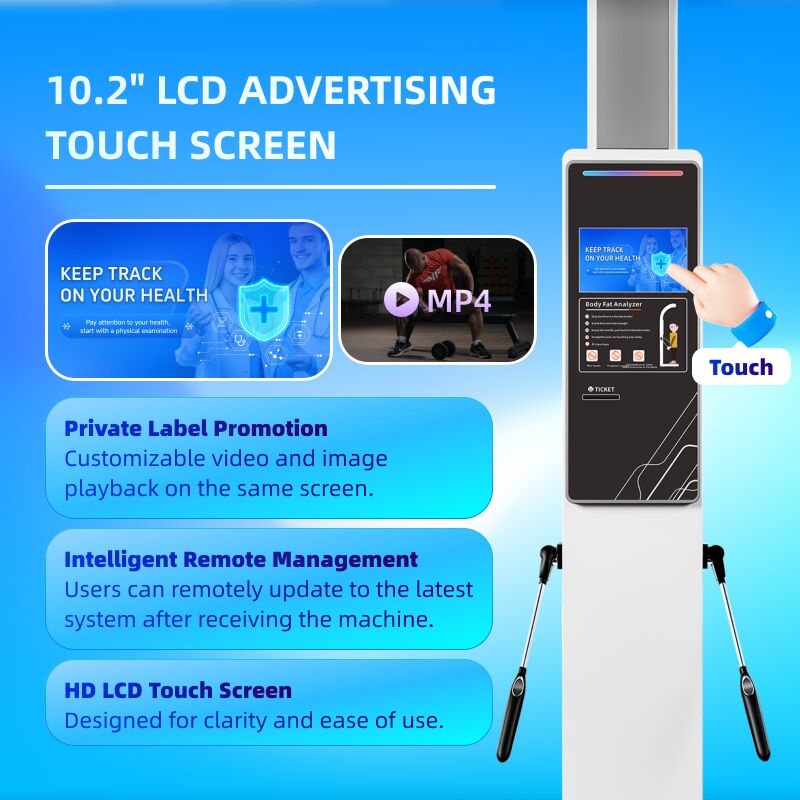

  • 1. The SH-V9F Body Composition Analyzer Machine is Equipped with a 10.2-inch LCD touchscreen, it displays real-time indoor temperature and time in standby mode, while supporting customized video and image playback for brand promotion. The machine integrates a coin acceptor (with optional banknote and Nayax card payment) to enable profitable self-service operation, alongside an AI voice-guided assistant that walks users through each step and automatically broadcasts results.
  • 2. Utilizing non-contact ultrasonic/millimeter-wave technology for height measurement and a precision balanced beam resistive strain sensor for weight, it ensures accurate, reliable data.
  • 3. The 8-point tactile electrode system and multi-frequency bioelectrical impedance analysis (BIA) at 20KHz and 100KHz deliver comprehensive body composition metrics—including body fat percentage, total body water, muscle mass, basal metabolic rate, and inorganic salts—across five body segments (left arm, right arm, trunk, left leg, and right leg).

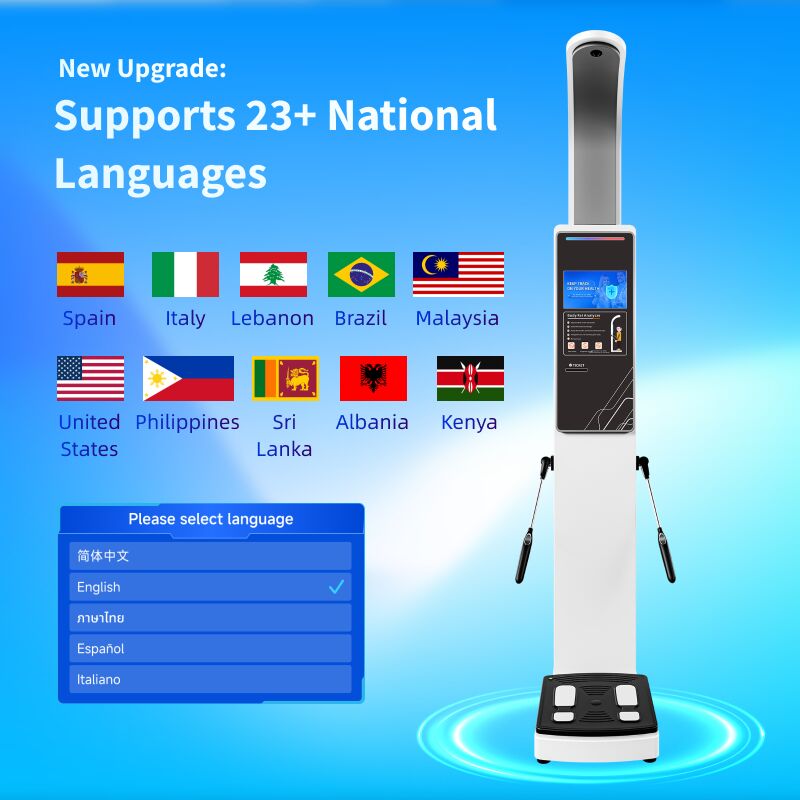

  • 4. Supporting 28 languages with free switching, and suitable for users aged 6 to 99, the SH-V9F offers a versatile, user-friendly, and revenue-generating solution for fitness centers, malls, clinics, and public spaces. Optional face recognition further enhances personalization and data tracking.
  • 5. Application Scenarios: Our 8‑electrode body composition analyzer is used in hospitals, clinics, nutrition centers, wellness centers, gyms, beauty salons, and sports clinics. It delivers accurate segmental data on muscle, fat, and hydration to guide clinical diagnosis, dietary planning, fitness coaching, and injury rehabilitation. Independent limb‑trunk measurement enhances precision, making it indispensable for health professionals.
