Zhengzhou shanghe electronic technology co. LTD

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

Product Details:
Place of Origin: Henan, China
Brand Name: SHANGHE
Certification: CE/ISO13485/OMIL
Model Number: SH-203
Document: SH-203.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 990
Packaging Details: 45*36.5*28cm (7.1kg) Net weight: 6.1kg, gross weight: 7.1kg; Volume: 0.05CBM
Delivery Time: 5-15 days
Payment Terms: L/C,D/P,D/A,T/T,Western Union
Supply Ability: 6000 sets per month
  • Detail Information
  • Product Description

Detail Information

Product Name: SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment With 11 Inch LCD Screen Keywords: Portable Health Station Community Clinic
Material: Metal Cabinet Customized: Language/Logo/sticker/color
Blood Pressure: 0-299mmHg(0kPa-39.9kPa); Pulse Range:40-180 Beats/min Body Temperature: Precision Infrared Thermometer, Range: 32°C-42.9°C, Accuracy: +0.2°C Resolution:0.1°C
Power Supply Voltage: AC100V-240V(50Hz/60Hz); Screen: HD LCD 11-inch Display Touch Screen
Machine Size: 410*335*150mm (L*W*H); Languages: Supports 29+ Languages Including English, Can Switch Languages Freely
Package Size: 45*36.5*28cm (7.1kg) Net Weight: 6.1kg, Gross Weight: 7.1kg; Volume: 0.05CBM Get Report: Scan QR Code By Phone To View Report And Download The A4 Report.

Product Description

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen


SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen



Product Description:

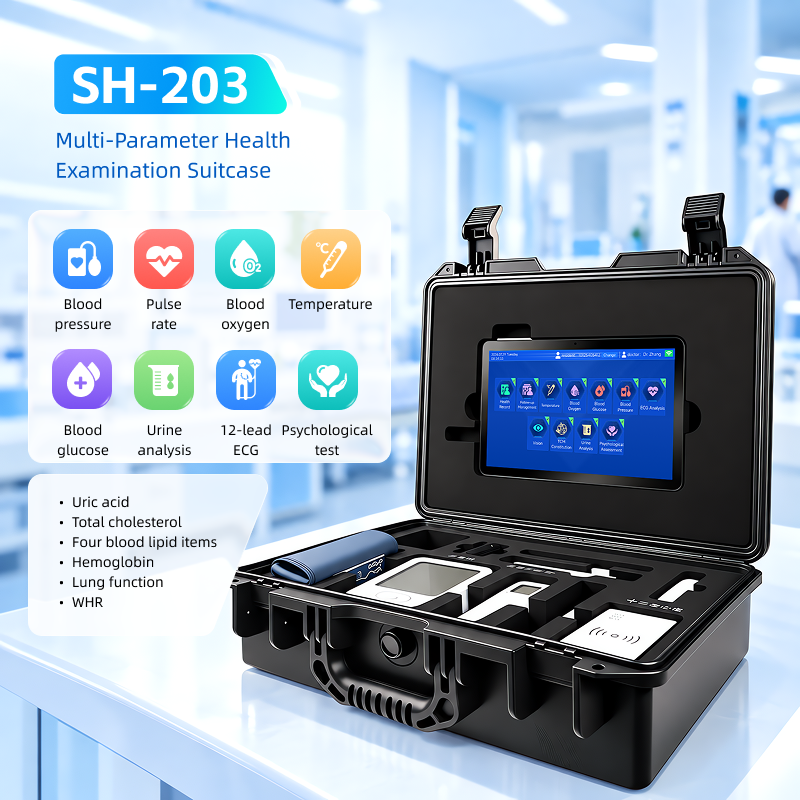

  • SH-203 All-in-One Smart Health Kiosk
  • Advanced Android-Powered Interface The SH-203 features a high-performance 11-inch IPS touchscreen tablet running the latest Android 14.0 operating system. Equipped with 6GB RAM and 128GB storage, it ensures smooth operation and rapid data processing. The system is optimized for health management, supporting Bluetooth 5.0, OTG upgrades, and a long-lasting 7000mAh battery for uninterrupted service in mobile or stationary setups.
  • Comprehensive Vital Signs Monitoring Designed for accuracy and efficiency, this all-in-one kiosk integrates multiple clinical-grade modules. It measures Blood Pressure (oscillometric method, 0-295 mmHg), Body Temperature (infrared, 32°C-42.9°C), and Blood Oxygen (SpO2, 35%-100%) with high precision. The device also includes a rapid urine analyzer capable of testing 14 parameters at a speed of ≥60 samples per hour, making it ideal for high-traffic screening environments.
  • Professional ECG & Data Connectivity The unit offers professional 12-lead ECG monitoring with 24-bit sampling accuracy and adjustable calibration settings for reliable cardiac analysis. All measurement data is seamlessly transmitted via WiFi, 3G/4G, or Bluetooth to cloud platforms. This connectivity allows for real-time electronic health record (EHR) creation, remote diagnosis support, and integration with third-party health management systems.
  • Versatile Applications & Customization Compact and portable (410x335x145mm), the SH-203 is perfect for health checkup vans, community clinics, pharmacies, and hospitals. While it covers essential vitals out of the box, it supports extensive customization. Optional modules can be added for Uric Acid, Cholesterol, Blood Lipids, Lung Function, Vision, and Body Fat analysis, allowing you to tailor the device to specific medical or wellness requirements.
  • Wide Applications – Ideal for hospitals, pharmacies, clinics, gyms, and wellness centers. Compact, smart, and profit-ready – upgrade your health screening experience.


Product Specifications


Model
SH-203
Languages
Supports 29 languages including English, can switch languages freely.
Screen

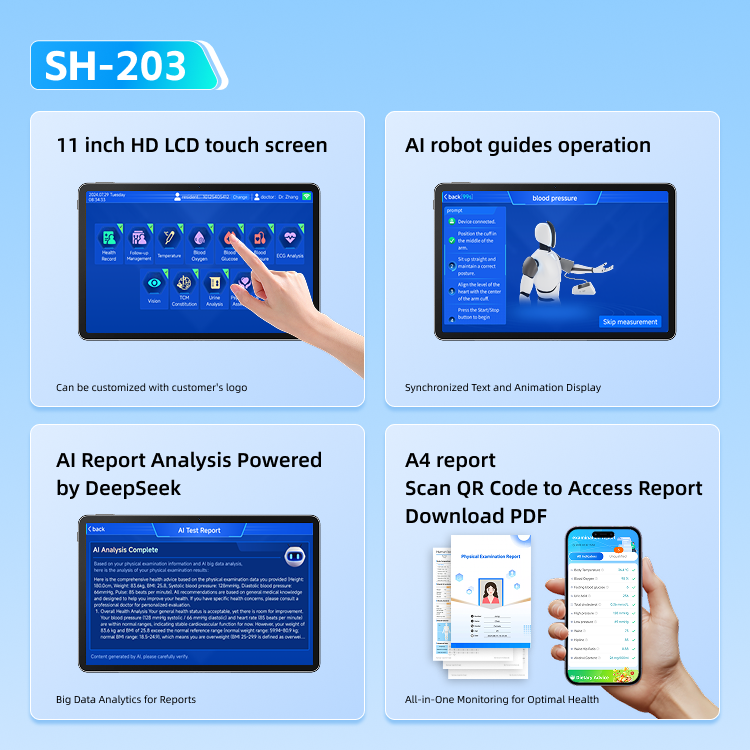

11 inch HD LCD screen can be customized with pictures and videos.
Intelligent Recognition
Standard: input login; IC/ID card, QR code scanning etc. (other methods can be customized)

Blood Pressure
Pressure: 0-299mmHg(0kPa-39.9kPa), pulse: 40-180 beats/min.
Accuracy: pressure: 3mmHg(±0.4kPa), pulse rate: Accuracy is 5%.
Body Temperature
Precision infrared thermometer, range: 32°C-42.9°C, accuracy: +0.2°C Resolution:0.1°C
Blood Oxygen
Finger clip oximeter, range:35%-100%;
Blood Glucose
20-600mg/dl (1.1-33.3Mmol/L); 20% when blood glucose concentration> 75mg/dl (4.17mmol/L).
Urine Analysis
White blood cells, glucose, calcium ions, microalbumin, PH and other 14 health indicators.
12 lead ECG
Standard 12-lead, sampling accuracy: 24 bits.
Psychological
Comprehensive 11-aspect psychological assessment covering anxiety, depression, loneliness, personality, relationships, sleep, and
more.
Vision
Vision, astigmatism, color weakness and color blindness, etc.
Expansion
Uric acid, total cholesterol, four blood lipid items, hemoglobin, lung function, WHR.
Get report
scan QR code by phone to view report and download the A4 report.
Data Transfer
WiFi, RS232; Bluetooth, 4G, cloud interface (optional); Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
Voltage
AC100V-240V(50Hz/60Hz); Power: ≤15W

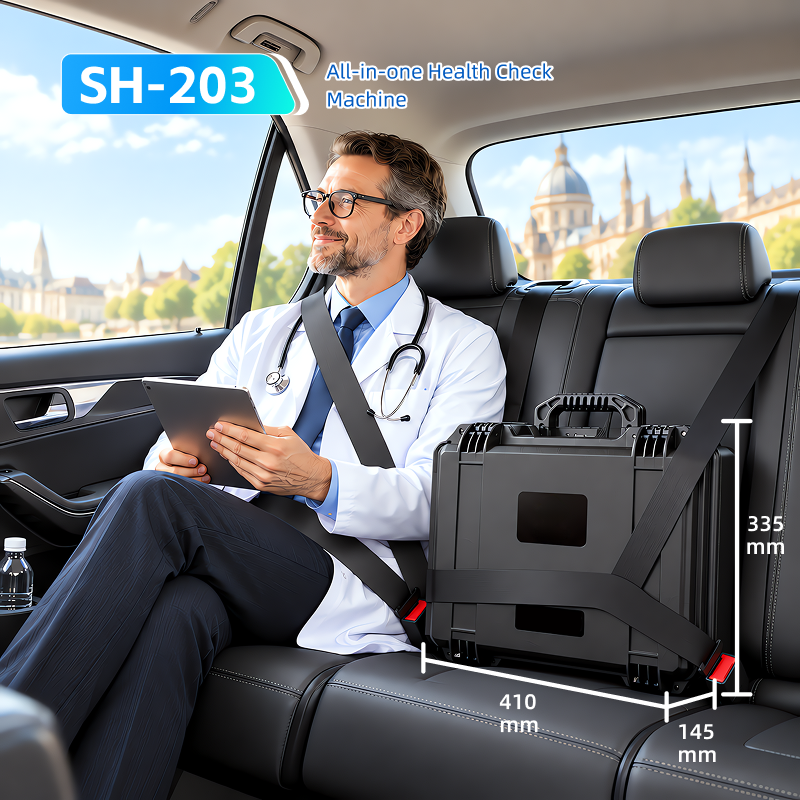

Dimension
410*335*150mm (L*W*H);
Package size
45*36.5*28cm (7.1kg)     Net weight: 6.1kg,   gross weight: 7.1kg;
Volume: 0.05CBM



Product Details:


SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen



What is the SHANGHE Service?

1. 24 hours to reply your inquiries and 72 hours solution response.

2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!


Company Profile:

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen

SH-203 Multifunctional Portable Health Station Community Clinic Portable Kiosk Medical Equipment with 11 Inch LCD Screen


FAQ:

Factory or trading company?

Factory with over 12 years of experience in height & weight body scales.



Why choose us?

We have an experienced R&D team and strict QC. All products are pre-tested before shipment, with a 1-year warranty



What's the MOQ?

MOQ is 1 piece, small orders accepted. In stock, samples ship in 1-3 working days.



What is your terms of payment & delivery?

100%T/T. 40% as deposit, and 60% against delivery. EXW, FOB, CIF, CFR.



Delivery time & Shipping methods?

2-10 working days after payment. Air or sea shipping, as per your request.



Can you customize the device?

Yes, we are a factory supporting OEM & ODM. Small-batch OEM orders are welcome.



About after-sales service &warranty ?

Professional technical team supports you via call, webcam or online chat. Contact us for any machine issues. 1 year warranty. Our after-sales team handles problems promptly.



Can the machine speak my language?

Support more than 29 languages(customization available). Including English, Aarabic, French, Italian, German, Thai, etc.



Main products and application scenarios

Vending scale, smart height weight BMI machine, medical body scale, body composition analyzer, health checkup kiosk, etc., which are widely used in hospitals, gym, beauty salons, pharmacies, clinics, shopping malls, schools, nursing homes, etc.;
