Zhengzhou shanghe electronic technology co. LTD

Height Weight And Blood Pressure Body Fat Machine Body Composition Monitor

Product Details:
Place of Origin: ZHENGZHOU,HENAN
Brand Name: SHANGHE
Certification: CE、ISO、EUIPO、GB/T 29490-2013、Urkunde
Model Number: SH-N15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 68.*74.5*151.5cm
Delivery Time: 3-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 sets/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Body Fat Machine Height Weight And Blood Pressure Body Composition Monitor Health Check Up Kiosk Blood Pressure: 0 - 299 MmHg
Display Type: LCD HD 15.0 Inch Weight Range: 5.0 - 500 Kg
Height Range: 20 - 210 Cm Pulse: 40 - 180 Pulse / Min
Port: Qingdao Or Tianjin Port Warranty: 12 Months
Gross Weight: 45kg Power Supply: AC100V-240V , 50HZ / 60HZ
Material: Metal Cabinet Power: ≤15W
High Light:

Height Weight Body Fat Machine


Blood Pressure Body Fat Machine


Blood Pressure Body Composition Monitor

Product Description

body fat machine height weight and blood pressure body composition monitor health check up kiosk

Product Introduction of health check kiosk

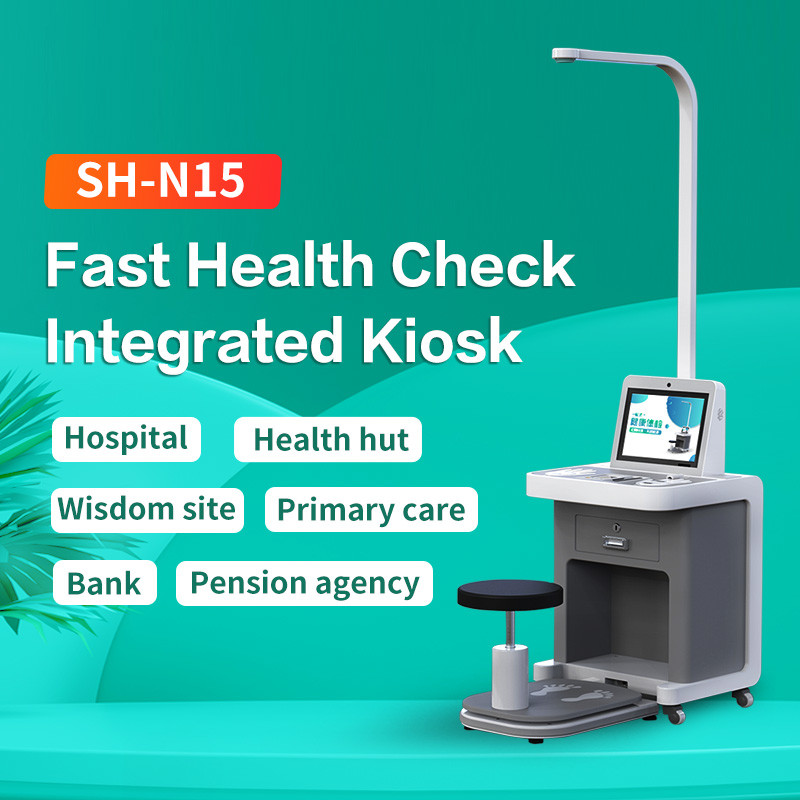

SH-N15 Fast Health Check Integrated Kiosk

Support multi-languages)

Coin function (optional)

15.0 inch LCD touch screen

Voice broadcast

Diagnose report

Movable with wheels

Easy operation

High hardness

Flexible options


Technology of health check kiosk

Model SH-N15 fast health check integrated kiosk
HD touch screen 15.0-inch high-definition touch screen can display the operation prompt interface and the test result. In the standby state, it can play health videos or pictures.
Standard measurement items Height, weight, BMI, blood pressure, heart rate, fat body composition, body temperature, blood oxygen, blood sugar, waist-to-hip ratio, TCM physical identification, vision test, mental health test, etc.
Optional measurement items Rapid ECG, 12-lead ECG, total uric acid cholesterol, alcohol test, etc.
Function configuration Thermal printing, face recognition, identity recognition
Data transmission Standard: WIFI, optional: Bluetooth, 4G, cloud transmission, etc.
Health report Print receipt, A4 color/black and white report (optional)
Docking system APP, public health system, HIS/LIS system, member management system, health software, etc.
Product specifications

Length * width * height: 1070mm*830mm* 2226.5mm

Weight : 42KG

Applicable scene

Hospital ,Community,Health Hut ,Driver's medical examination ,

Bank ,Health station,Wisdom site,Primary care,Pension agency

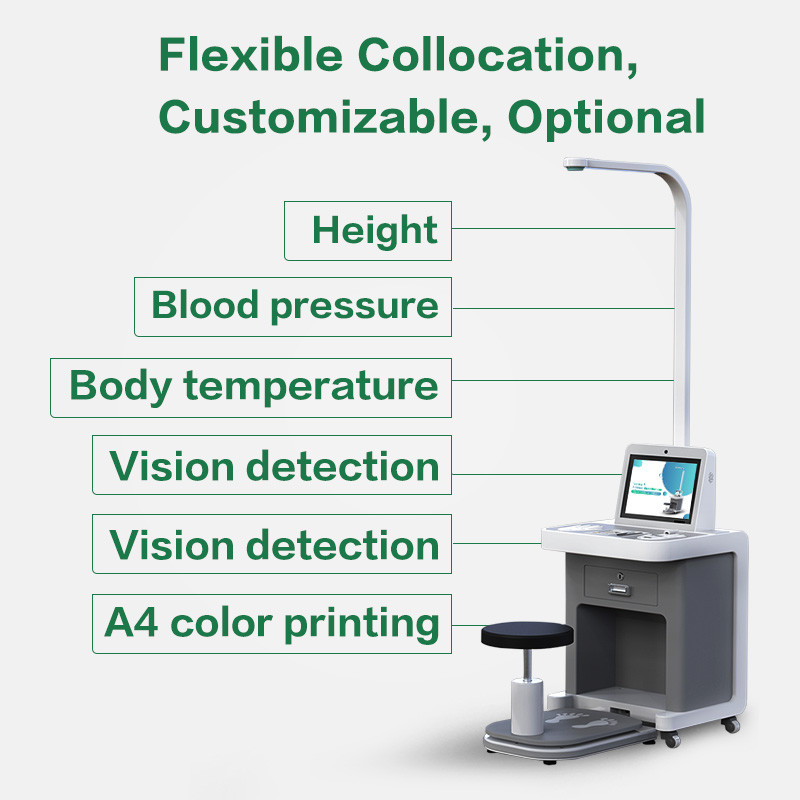

Pictures of health check kiosk

Height Weight And Blood Pressure Body Fat Machine Body Composition Monitor 0


Product Advantage of health check kiosk


1.Two Printing Methods:

*Thermal printer

*A4 black and white/color printing (optional)


2. Self-service measurement:

Clear voice and measurement interface guidance prompts can complete all testing items by self-help, reducing labor.

Height Weight And Blood Pressure Body Fat Machine Body Composition Monitor 1

Product details​ of health check kiosk


01 Liftable seat:

Seat height can be adjusted manually


02 15.0 inch LCD touch screen:

Displayed Operation page and measurement results, play promotional videos and pictures in standby mode.


03 Print receipts:

A4 black and white/color printing (optional)


04 Load cell :

Measurement range:2-200kg Measure accuracy:+0.1KG/+0.01KG


05 Easy to move:

The machine have wheels at the bottom,easy to transport and move

Height Weight And Blood Pressure Body Fat Machine Body Composition Monitor 2


1.What is BMI?

Body Mass Index (BMI) is a simple calculation using a person’s height and weight. The formula is BMI equals to kg/m2 , the kg is his weight in kilograms, and m2 is his height in metres squared. A BMI of 25.0 or more is overweight, while the healthy range is 18.5 to 24.9. BMI applies to most adults 18-65 years.

2.What is body composition?

Body composition is a method of breaking down the body into its core components: fat, protein, minerals, and body water. It describes your weight more accurately and provides a better glimpse into your overall health than traditional methods. Body composition analysis can accurately show changes in fat mass, muscle mass, and body fat percentage.

3. Is your health data accurate?

Yes, the data is correct. Each of the measurement equipment provides a clinical evaluation report, which approves all the results that are seriously tested by an authorized laboratory and compare with industry branding.

4.Why is body composition important to measure?

Body composition describes the amount of fat, bone, water, and muscle in the body. Measuring your body composition will tell you your own body’s unique makeup and help you identify areas to work on to improve your overall health and wellness.
