Zhengzhou shanghe electronic technology co. LTD

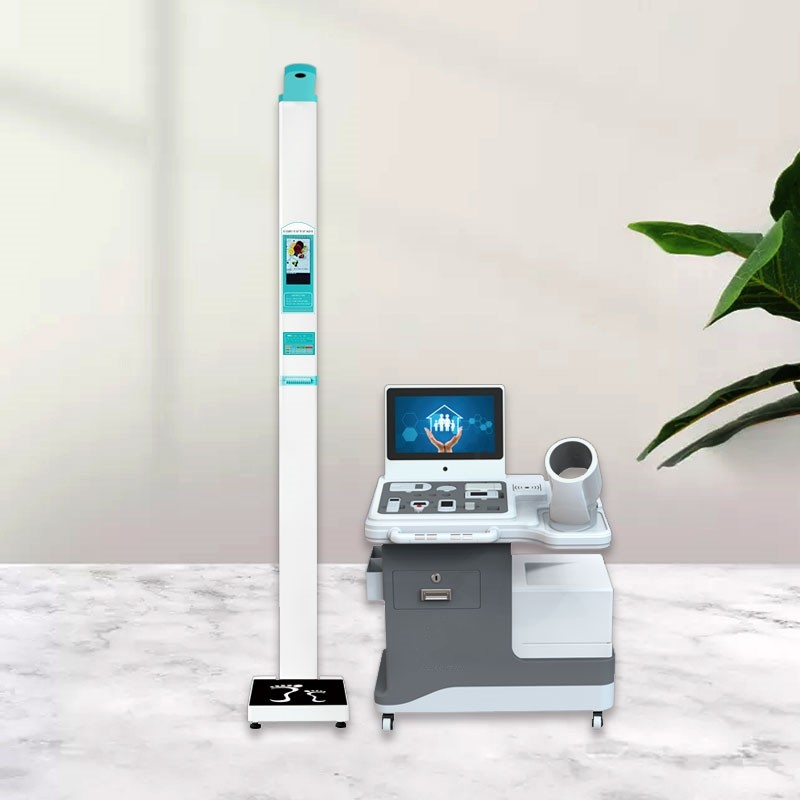

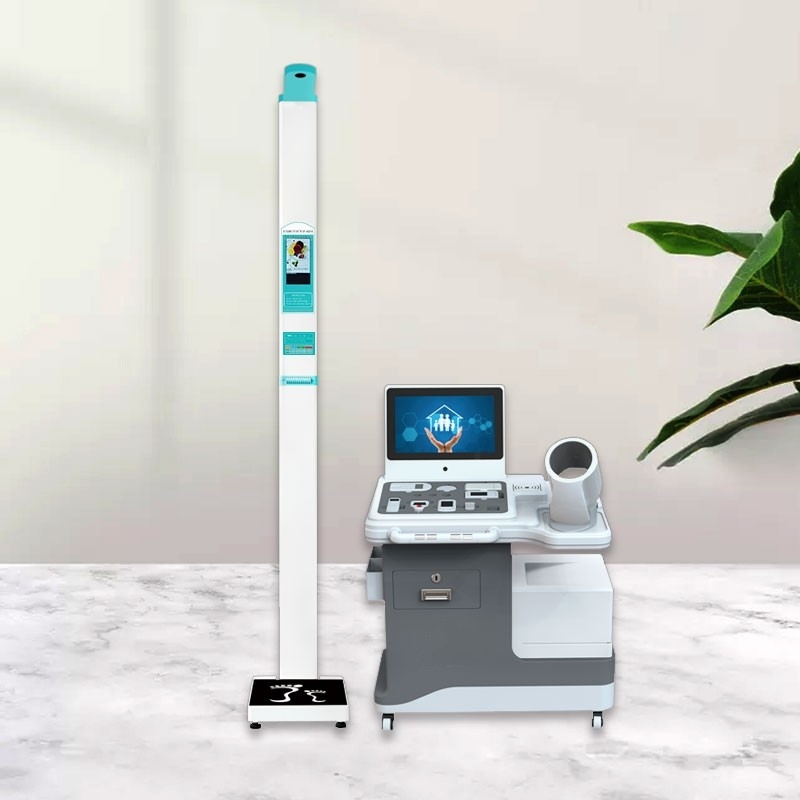

15.6 Inch Screen Intelligent Health Examination Kiosk

Product Details:
Brand Name: SHANGHE
Certification: CE、EUIPO、GB/T 29490-2013、Urkunde
Model Number: SH-T16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 126*31*31cm(10Kg); 46* 57*20cm (11kg); 130*94*72cm(75kg);
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 sets/month
  • Detail Information
  • Product Description

Detail Information

Product Name: 15.6 Inch Screen Intelligent Health Examination Kiosk Blood Pressure Measurement: Blood Pressure: 0-299mmHg (0-39.9kpa) Pulse: 40- 180times/min
Fat Measurement: Fat:5.0- 75%; Basal Metabolism:385kcal- 5000kcal; Blood Oxygen: 80% ~ 100%
ECG Test: Standard 12-lead Blood Glucose: 20-600mg/dl (1.1-33.3Mmol/L)
Uric Acid: 3-20mg/dl(0.18-1.19mmol/L) Total Cholesterol: 100-400mg/dI (2059- 10.35mmol/L)

Product Description

15.6 Inch Screen Intelligent Health Examination Kiosk


Product Description:

SH-T16 Health Check-up Integrated Kiosk Function Features:

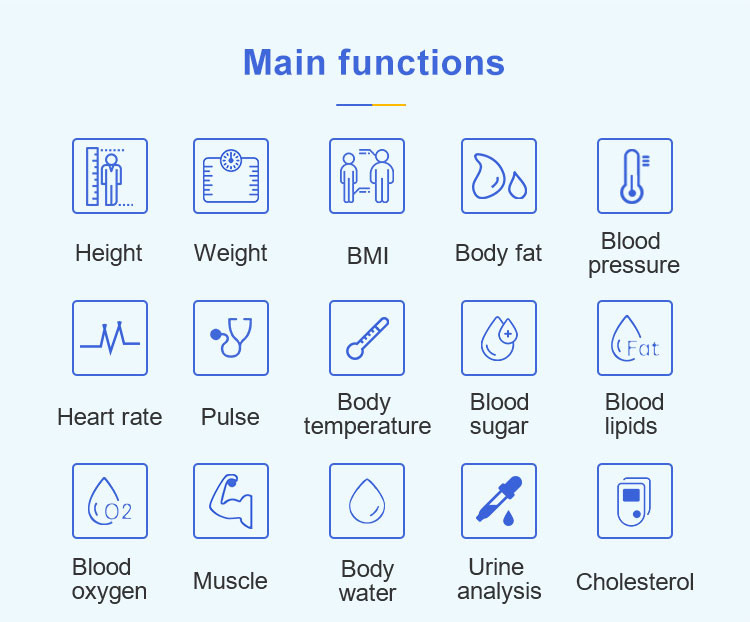

SH-T16 Health Check-up Kiosk, 15.6-inch LCD touch screen. Multiple login methods with automatic recognition and can manage members after registration. 50+ health indicators can be measured at each time. The measurements are height, weight, body fat, blood pressure, body temperature, blood oxygen, standard 12-lead ECG, urine analysis test, Finger blood sampling can measure blood sugar, uric acid, total cholesterol, four blood lipids, hemoglobin, etc. Then user can view all the measurements, and print A4 report, test data support uploading to public health system or regional platforms,etc.


15.6 Inch Screen Intelligent Health Examination Kiosk 015.6 Inch Screen Intelligent Health Examination Kiosk 115.6 Inch Screen Intelligent Health Examination Kiosk 2


Product Specifications:


HD touch screen
15.6-inch high-definition touch screen, multimedia pictures and videos and other content promotion, intelligent display of results
Intelligent Recognition
ID card, mobile phone number, input recognition, etc. (other methods can be customized)
Height measurement
Measuring range: 20-210cm
Measurement accuracy: ±0.5cm
Weight measurement
Measuring range: 2.0-500kg
Measurement accuracy: ±0.1kg
Blood pressure measurement
Using upper arm Panasonic sphygmomanometer
Blood pressure: 0-299mmHg (0-39.9kpa) pulse: 40- 180times/min
division value: ±4mmHg pulse reading 5% ~ 7%
Fat measurement
Measuring range: 5.0% ~ 75% Basal metabolism:385kcal- 5000kcal
Temperature measurement
Body temperature range: 34°C-43°C
measurement error +0.2°C, resolution: 0.1°C,
measuring distance 1-5CM
Blood oxygen test
Measurement accuracy: in the range of 80% ~ 100%,
measurement error is ±2%, resolution: 1%
Blood glucose test
Detection range: 20-600mg/dl (1.1-33.3mmol/L)
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, PH, etc.
Cholesterol test
Detection range: 100-400mg/dI (2059- 10.35mmol/L)
Four tests of blood lipids
Total cholesterol, high density lipoprotein, triglycerides,
low density lipoprotein
ECG test
Standard 12-lead
A4 color report
Color laser printer, high efficiency and large capacity, standard A4 paper printing medical report
Data Transfer
wifi , RJ 45/Lan, USB(optional), Bluetooth(optional)
Overall dimension
107*83*223 /LWH(cm) ,42kg
152*75*71cm (59kg)


SH-T16 Health Check-up Integrated Kiosk
* Multi-function:40+ health indicators
* Intelligent android system
* Self-service measurement
* Integrated design
* High efficiency


15.6 Inch Screen Intelligent Health Examination Kiosk 3



1. Are you trading company or manufacture?

Yes, we are a professional factory.


2. What is your terms of packing?

Generally, we pack our goods in carton case per set.


3. What is your terms of payment?
T/T 40% as deposit, and 60% against delivery. We'll show you the photos of the products and packages before you pay the balance.
4. What is your terms of delivery?
5. How about your delivery time?
Generally, it will takes 3-5 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
6. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
7. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
15.6 Inch Screen Intelligent Health Examination Kiosk 415.6 Inch Screen Intelligent Health Examination Kiosk 5
